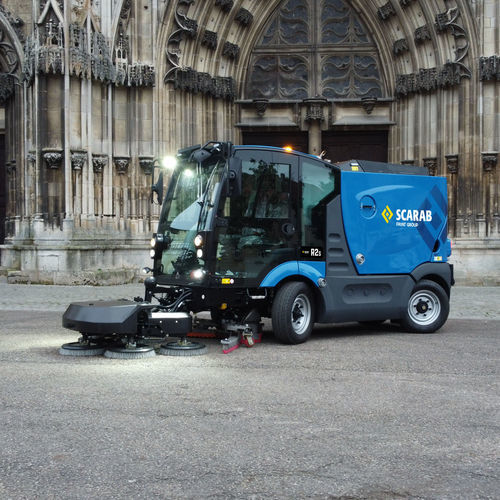

Ride-on sweeper RAVO R2s

streetdiesel enginestreet

Product overview:
The quiet RAVO R2s is a compact industrial road sweeper designed for high-efficiency total surface cleaning with minimal environmental impact. Its integrated system performs simultaneous wetting, soaping, scrubbing, recovery and recycling of wastewater, enabling effective, non-aggressive cleaning across varied surfaces while maintaining low noise and emissions.

Vehicle specification:

• GVW: 5 tonne
• Top speed: 0–30 mph / 0–48 kph
• Sweeping speed: 0–9 mph / 0–15 kph
• Water tank capacity: 1,500 litres
• Clean water capacity (operational): 1,000 litres
• Engine options: VM R754EU6 or Kubota V3800

Main features:

• Shampoo & soaking: Low-pressure (3 bar) application combined with brush action for effective washing and stripping of encrusted substances.
• Degreasing container: 20-litre tank; supports extended operating periods. Degreasing agent is 100% biodegradable.
• Used water recycling: Onboard suction and storage for dirty water with dedicated recovery system to maximise autonomy.
• Venturi dosing: In-cab dosing of degreaser via venturi connected to the clean water delivery line for on-the-fly adjustment.
• Brushing system: Adjustable ground pressure and brush rotation speed; working width 1,280–2,100 mm to suit different configurations.
• Suction system: Scraper-assisted suction across a 1,600 mm span; suction mouth includes a trap for large waste (paper, cans, glass bottles).

Technical specifications:

• GVW: 5 tonne
• Top speed: 0–30 mph / 0–48 kph
• Sweeping speed: 0–9 mph / 0–15 kph
• Water tank: 1,500 litres (page listing)
• Clean water capacity: 1,000 litres (features)
• Engine options: VM R754EU6, Kubota V3800
• Degreasing container: 20 litres, degreaser 100% biodegradable
• Degreaser delivery: Venturi system for in-cab dosing; distribution at low pressure (3 bar)
• Brushing working width: 1,280–2,100 mm; adjustable pressure and brush speed
• Suction mouth span: 1,600 mm; trap for large waste (paper, cans, glass bottles)
• Cleaning process: simultaneous wetting, soaping, scrubbing, recovery and recycling of wastewater
• Designed for low noise and low exhaust emissions; non-aggressive surface treatment
