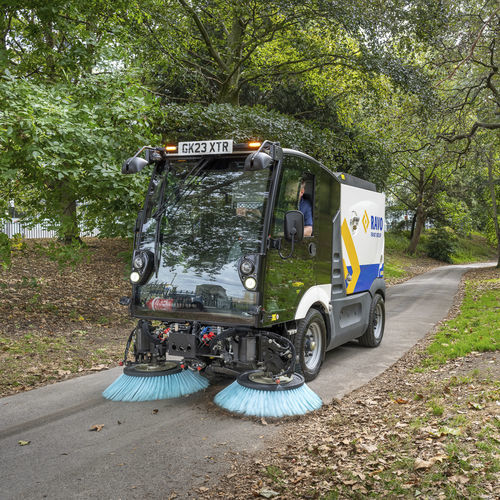

Ride-on sweeper RAVO R2

streetgasolinediesel

Overview
The RAVO R2 is a compact municipal street sweeper designed for urban environments. It combines a 2 m³ stainless-steel hopper with a dedicated hydraulic suction system and a patented Push/Pull (PPS) rotary cylinder brush to provide efficient debris collection and extended working reach. Available with petrol and diesel engine options and several operator-focused features.

Key features

• High suction capacity for the 2 m³ class with reinforced extra-large suction mouth and large-diameter direct suction pipe.
• Patented Push/Pull (PPS) sweeping system; brush deployment up to 2450 mm (up to 2900 mm with optional third brush).
• Two- and four-wheel steering, patented Auto‑Steer system and short rear overhang for operation in confined urban spaces.

Environmental responsibility & operating modes
Three preset operating modes: Standard, EcoMode and BoostMode. EcoMode covers most routine sweeping tasks and can provide up to 50% fuel savings compared with intensive mode, while reducing noise and extending component life. The machine achieves 4 stars in the EUnited PM2.5/10 test. A recycled waste-water system reduces fresh water consumption by collecting and re-injecting used water into the suction nozzle.

Engine options

• Kubota V3800 Stage V / Tier 4 - 55.4 kW @ 2200 rpm (72 hp)
• VM R754 Euro 6 Step D - 62 kW @ 2300 rpm (83 hp)
• Kubota Stage IIIA - 55.4 kW @ 2200 rpm (72 hp)
• Kubota WG 3800 Gasoline Stage V - 65 kW @ 2600 rpm (78 hp)
• Kubota Gasoline Stage V Ethanol - 65 kW @ 2600 rpm (78 hp)

Maneuverability
Extra-compact dimensions with a short rear overhang, selectable 2- or 4-wheel steering in sweeping mode, optimised turning radius and Auto‑Steer function that realigns the rear axle in transit mode for efficient movement between work sites.

On-board comfort & safety

• Standard automatic air conditioning and foot-level heating.
• Suspended driver and passenger seats with multiple adjustments and 3-point seatbelts; passenger foot rest.
• MP3/SD/USB Bluetooth radio with hands-free kit; 12V socket and dedicated smartphone compartment.
• Rear-view and suction-nozzle cameras; improved 360° visibility via low windscreen, glass side doors, panoramic mirrors and floor window.

Sweeping performance
The PPS rotary cylinder brush system increases sweeping reach and functionality. The chassis includes a large-capacity stainless-steel hopper, reinforced frame and resized rear axle. The hydraulic system, reinforced suction nozzle and large-diameter high-resistance direct suction pipe deliver high suction power for effective debris intake.

Adaptability and options
With the standard front arrangement the RAVO R2 can be configured as a 3-brush sweeper, mechanical weeder, brushing/scouring unit, street washer or snow removal machine. Available accessories include a third brush, washing kit with high-pressure pump and automatic hose reel, 200-litre salt spreader, rotating snow brush and hydraulic snow blade.

Technical specifications

• Size: 5.3 tonne GVW
• Top speed: 0–30 mph / 0–48 kph
• Sweeping speed: 0–9 mph / 0–15 kph
• Hopper capacity: 2 cubic metres
• Water tank capacity: 300–500 litres
• Engine: Petrol & Diesel options (see engine options list)
• Sweep width: 1280–2450 mm (reach up to 2450 mm; up to 2900 mm with third brush option)
• Preset operating modes: Standard, EcoMode, BoostMode (EcoMode up to 50% fuel savings)
• Emissions: 4 stars in EUnited PM2.5/10 test
• Hopper material: large-capacity stainless steel
• Resized rear axle safe load capacity: 3.5 tonnes
• Wheels: 16-inch
• Water recycling: recycled waste-water system reduces fresh water consumption
