CNC turning center 302
3-axis2-spindle12 tools

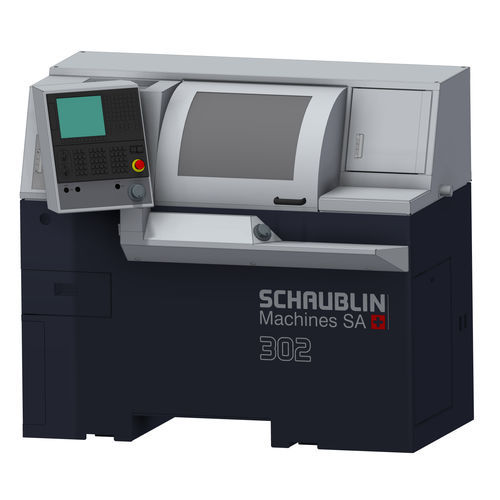

CNC turning center - 302 - SCHAUBLIN MACHINES - 3-axis / 2-spindle / 12 tools
CNC turning center - 302 - SCHAUBLIN MACHINES - 3-axis / 2-spindle / 12 tools
CNC turning center - 302 - SCHAUBLIN MACHINES - 3-axis / 2-spindle / 12 tools - image - 2
CNC turning center - 302 - SCHAUBLIN MACHINES - 3-axis / 2-spindle / 12 tools - image - 3
Add to favorites
Compare this product

Characteristics

Control type
CNC
Number of axes
3-axis
Number of spindles
2-spindle
Number of tool stations
12 tools
Applications
for mass production
Performance
high-precision
Other characteristics
compact
Diameter

200 mm
(7.87 in)

Spindle speed

Min.: 50 rpm
(314.159 rad.min-1)

Max.: 8,000 rpm
(50,265.482 rad.min-1)

Bar capacity

19 mm
(1 in)

Axe X

140 mm
(6 in)

Axe Z

240 mm
(9 in)

Rapids on X

12 m/min

Rapids on Z

12 m/min

Nominal power

7.5 kW, 9 kW
(10.2 hp, 12.2 hp)

Maximum torque

12 Nm, 14 Nm
(9 ft.lb, 10 ft.lb)

Coolant capacity

117 l
(31 gal)

Overall lenght

1,795 mm
(71 in)

Overall width

969 mm
(38 in)

Overall height

1,485 mm
(58 in)

Weight

1,100 kg
(2,425 lb)

Description

The 302 unit’s compact size and flexibility guarantee economic small and large scale production runs! The 302 unit combines modernity and tradition, with the Fanuc Oi-TF Plus control system for automated mass production. Our mission is to meet your requirements quickly and working efficiently with you to develop new applications. Our experts can rise to your challenges.
