CNC turning center 125
4 tools8 toolshigh-precision

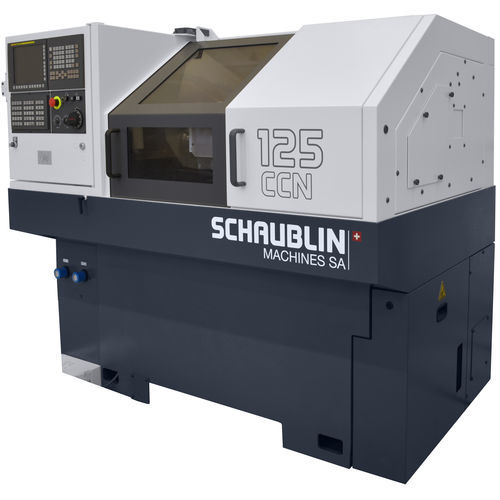

CNC turning center - 125 - SCHAUBLIN MACHINES - 4 tools / 8 tools / high-precision
CNC turning center - 125 - SCHAUBLIN MACHINES - 4 tools / 8 tools / high-precision
CNC turning center - 125 - SCHAUBLIN MACHINES - 4 tools / 8 tools / high-precision - image - 2
CNC turning center - 125 - SCHAUBLIN MACHINES - 4 tools / 8 tools / high-precision - image - 3
Add to favorites
Compare this product

Characteristics

Control type
CNC
Number of tool stations
4 tools, 8 tools
Performance
high-precision
Diameter

270 mm
(10.63 in)

Spindle speed

Min.: 0 rpm
(0 rad.min-1)

Max.: 5,000 rpm
(31,415.927 rad.min-1)

Maximum part length

265 mm, 409 mm
(10 in, 16 in)

Bar capacity

19 mm, 24 mm, 32 mm
(1 in, 1 in, 1 in)

Axe X

185 mm, 190 mm, 200 mm
(7 in, 7 in, 8 in)

Axe Z

390 mm, 395 mm, 400 mm, 415 mm
(15 in, 16 in, 16 in, 16 in)

Rapids on X

8 m/min

Rapids on Z

8 m/min

Nominal power

7.5 kW, 11 kW
(10.2 hp, 15 hp)

Maximum torque

43 Nm, 84 Nm
(32 ft.lb, 62 ft.lb)

Coolant capacity

55 l
(15 gal)

Overall lenght

1,830 mm
(72 in)

Overall width

1,260 mm
(50 in)

Overall height

1,700 mm
(67 in)

Weight

1,250 kg, 1,400 kg, 1,570 kg
(2,756 lb, 3,086 lb, 3,461 lb)

Description

Two linear axes and a C-axis define the machine’s kinematics. The carriage rests on a cast-iron parallel bed, and the X and Z axes run on cast-iron/cast-iron slides. This feature guarantees flawless precision and proven longevity. The machine’s high rigidity enables it to machine hardened materials. In linear version or with 8-position revolver, the accessories available for the 125-CNC give it a wide range of machining geometries
