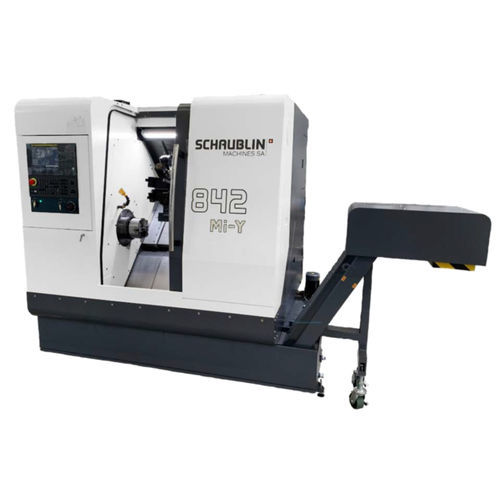

CNC turning center 842 MIA2-512 toolsspindle
Add to favorites
Compare this product
Characteristics
- Control type
- CNC
- Spindle mount
- A2-5
- Number of tool stations
- 12 tools
- Other characteristics
- high-precision, with turret, spindle, rigid
- Diameter
260 mm, 350 mm
(10.24 in, 13.78 in)- Spindle speed
Max.: 6,000 rpm
(37,699.112 rad.min-1)Min.: 0 rpm
(0 rad.min-1)- Maximum part length
398 mm
(16 in)- Nominal power
24 kW, 30 kW
(32.6 hp, 40.8 hp)- Maximum torque
72 Nm, 90 Nm
(53 ft.lb, 66 ft.lb)- Overall lenght
1,895 mm
(75 in)- Overall width
1,783 mm
(70 in)- Overall height
1,947 mm
(77 in)- Weight
4,400 kg, 4,600 kg
(9,700 lb, 10,141 lb)
Description
High-precision machine, ideal for complex applications and also suitable for hard turning.
Based on a rigid construction, our machines can be adapted to suit your applications. It includes a spindle with integrated motor and a 12-position revolver for outstanding precision. Tailstock and counter-spindle are available as options.
Catalogs
842 Mi
12 Pages
