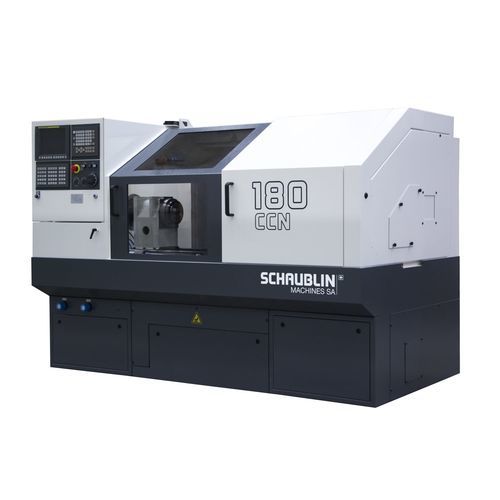

CNC turning center 180-CCN
A2-6A2-58 tools

CNC turning center - 180-CCN - SCHAUBLIN MACHINES - A2-6 / A2-5 / 8 tools
CNC turning center - 180-CCN - SCHAUBLIN MACHINES - A2-6 / A2-5 / 8 tools
CNC turning center - 180-CCN - SCHAUBLIN MACHINES - A2-6 / A2-5 / 8 tools - image - 2
CNC turning center - 180-CCN - SCHAUBLIN MACHINES - A2-6 / A2-5 / 8 tools - image - 3
Add to favorites
Compare this product

Characteristics

Control type
CNC
Spindle mount
A2-6, A2-5
Number of tool stations
8 tools
Applications
for large parts
Performance
high-precision
Diameter

160 mm, 330 mm
(6.3 in, 12.99 in)

Spindle speed

Min.: 50 rpm
(314.159 rad.min-1)

Max.: 50,000 rpm
(314,159.265 rad.min-1)

Maximum part length

721 mm
(28 in)

Axe X

231 mm, 243 mm
(9 in, 10 in)

Axe Z

721 mm
(28 in)

Rapids on X

8 m/min, 15 m/min

Rapids on Z

8 m/min, 15 m/min

Nominal power

15 kW, 18.5 kW
(20.4 hp, 25.2 hp)

Coolant capacity

120 l
(32 gal)

Overall lenght

2,301 mm
(91 in)

Overall width

1,460 mm
(57 in)

Overall height

1,676 mm
(66 in)

Weight

2,640 kg
(5,820 lb)

Description

Two linear axes and a C-axis define the machine’s kinematics. The carriage rests on a cast-iron parallel bed, and the X and Z axes run on cast-iron/cast-iron slides. This feature guarantees flawless precision and proven longevity. The machine’s high rigidity enables it to machine hardened materials. In linear version or with 8-position revolver, the accessories available for the 125-CNC give it a wide range of machining geometries.
