CNC turning center 942-Y
3-axisrigidA2-6

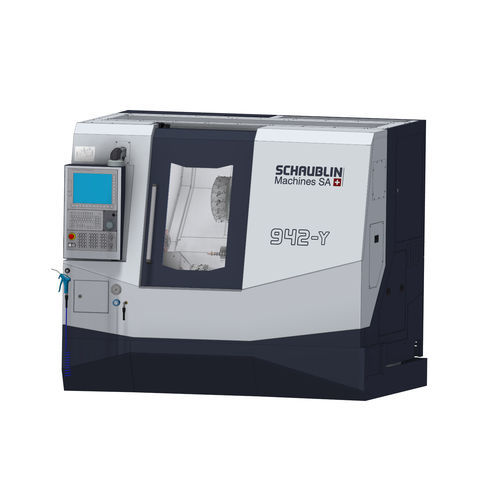

CNC turning center - 942-Y - SCHAUBLIN MACHINES - 3-axis / rigid / A2-6
CNC turning center - 942-Y - SCHAUBLIN MACHINES - 3-axis / rigid / A2-6
Add to favorites
Compare this product

Characteristics

Control type
CNC
Number of axes
3-axis
Structure
rigid
Spindle mount
A2-6, A2-5, VDI 30
Number of tool stations
12 tools
Performance
high-precision
Diameter

400 mm
(15.75 in)

Spindle speed

Max.: 6,000 rpm
(37,699.112 rad.min-1)

Min.: 0 rpm
(0 rad.min-1)

Maximum part length

650 mm
(26 in)

Bar capacity

42 mm, 65 mm
(2 in, 3 in)

Axe X

420 mm
(17 in)

Axe Z

650 mm
(26 in)

Rapids on X

18 m/min

Rapids on Z

30 m/min

Nominal power

12 kW, 13 kW, 14 kW
(16.3 hp, 17.7 hp, 19 hp)

Maximum torque

60 Nm, 85 Nm, 100 Nm, 140 Nm
(44 ft.lb, 63 ft.lb, 74 ft.lb, 103 ft.lb)

Coolant capacity

200 l
(53 gal)

Overall lenght

2,450 mm
(96 in)

Overall width

1,900 mm
(75 in)

Overall height

2,120 mm
(83 in)

Weight

5,000 kg
(11,023 lb)

Description

Our machines are manufactured around a rigid structure, and can be modified to suit your specific area of use. A counter spindle and tailstock are available as options as well as a second 3-axis revolver. Our mission is to meet your requirements with speed and efficiency working with you to develop new applications. Our experts can rise to your challenges.
