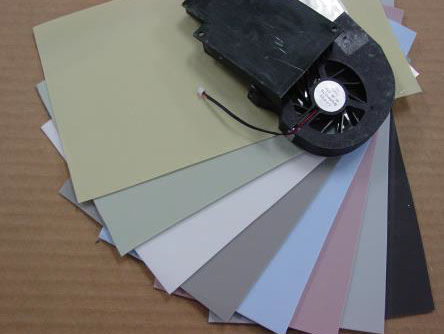

TCR 200 is an economical gap filling material. It offers moderate thermal conductivity and compressibility. It is an ideal solution for cost-sensitive applications.
TCR 200 is RoHS compliant, halogen free and electrically non-conductive. It is naturally tacky and additional adhesive is generally not required.
Features and Benefits
1.2W/m-K thermal conductivity
Cost effective
Naturally tacky
Electrically isolating
RoHS compliant
Color -
Multi-color
Thickness Range [inch/(mm -
0.02" (0.50)~0.40" (10.1)
Thermal Conductivity [W/mK] -
1.2
Hardness [Shore 00] -
40
Operation Temperature [°C] -
-40°C~200 °C
Halogen-Free [under 700ppm] -
Yes
