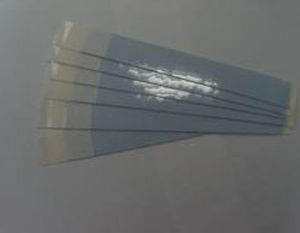

Thermally conductive gap filler OP-8100

thermally conductive gap filler
thermally conductive gap filler
thermally conductive gap filler
Add to favorites
Compare this product


OP-8100 is a gap filling material suitable for cost sensitive applications. It is electrically non-conductive and offers moderate thermal conductivity and compressibility. The proprietary formulation of OP-8100 is RoHS compliant and halogen-free, providing extra reassurance in applications where hazardous substances are forbidden. Features and Benefits 1.2W/m-K thermal conductivity Moderate compressibility Cost effective Electrically isolating RoHS compliant Halogen-free Color - Blue Thickness Range [inch/(mm - 0.01" (0.25)~0.40" (10.1) Thermal Conductivity [W/mK] - 1.2 Hardness [Shore 00] - 60 Operation Temperature [°C] - -40°C~200°C Halogen-Free [under 700ppm] - Yes
