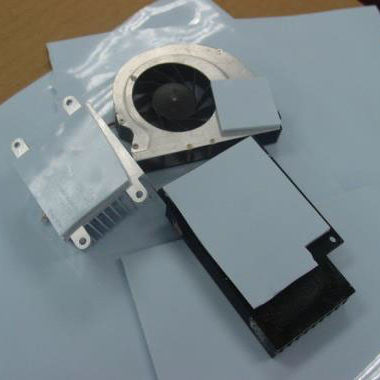

OP-8300 is a ceramic filled silicone elastomer. It is exceptionally soft and is suitable for applications that require moderate thermal performance. The formulation of OP-8300 is designed to be RoHS compliant and halogen-free, providing extra reassurance in applications where hazardous substances are forbidden. OP-8300 is electrically non-conductive and naturally tacky. Additional adhesive is generally not required.
Features and Benefits
1.5W/m-K thermal conductivity
Exceptional compressibility
Cost effective
Naturally tacky
Electrically isolating
RoHS compliant
Halogen-free
Color -
Blue
Thickness Range [inch/(mm -
0.01" (0.25)~0.40" (10.1)
Thermal Conductivity [W/mK] -
1.5
Hardness [Shore 00] -
25
Operation Temperature [°C] -
-40°C~200°C
Halogen-Free [under 700ppm] -
Yes
