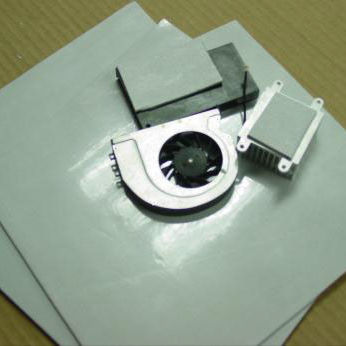

The proprietary metal filler formula of OP-9700 offers superior thermal performance with moderate compressibility.
This thermally conductive gap filler is RoHS and halogen-free compliant. It is suitable for applications where high thermal performance and stringent control of hazardous constituents are
required.
OP-9700 is naturally tacky. Additional adhesive is generally not required.
Features and Benefits
10.0W/m-K thermal conductivity
Naturally tacky
RoHS compliant
Halogen-free
Color -
Grey
Thickness Range [inch/(mm -
0.03" (0.76)~0.40" (10.1)
Thermal Conductivity [W/mK] -
10
Hardness [Shore 00] -
60
Operation Temperature [°C] -
-40°C~200°C
Halogen-Free [under 700ppm] -
Yes
