Thermally conductive gap filler OP-8600

thermally conductive gap filler
thermally conductive gap filler
Add to favorites
Compare this product


Description

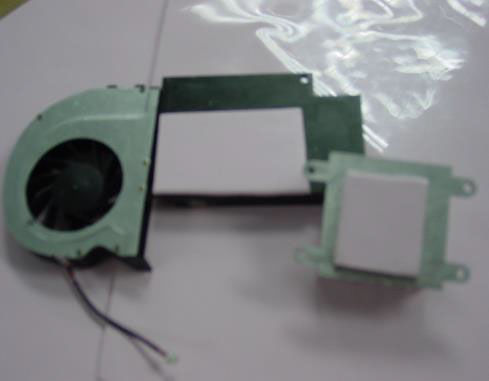

OP-8600 is a high performance thermal gap filler with good conformability. It is effective in blanketing uneven surfaces while transferring heat from the heat source to the cooling component. It is electrically non-conductive and naturally tacky. Additional adhesive is generally not required. Its RoHS compliant and halogenfree status provides extra assurance for applications that are sensitive to hazardous substances. Features and Benefits 3.2W/m-K thermal conductivity Good conformability Naturally tacky Electrically isolating RoHS compliant Halogen-free Color - Pink Thickness Range [inch/(mm - 0.01" (0.25)~0.40" (10.1) Thermal Conductivity [W/mK] - 3.2 Hardness [Shore 00] - 45 Operation Temperature [°C] - -40°C~200°C Halogen-Free [under 700ppm] - Yes
