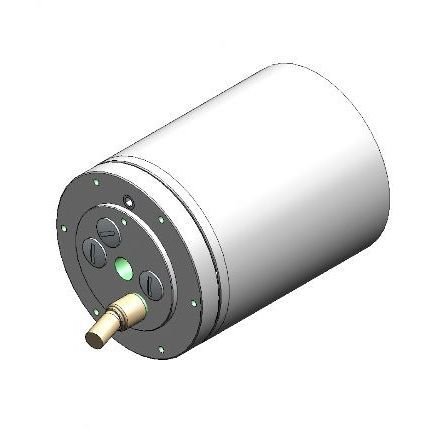

PROFIBUS slip ring 7KM000003

for rotary tablesfor packagingfor robotics

One of the most frequently ordered configurations is our MIA slip ring with Profibus module. The slip rings are manufactured in our production in Fürstenfeldbruck (Made in Germany). The slip ring can be individually adjusted using the MIA configurator. This is a best-selling configuration suggestion. Among the downloads you will find the MIA product brochure, which explains the construction kit in detail. Profibus (12 Mbit) + 8 signal tracks (30 V/3 A). Dimensions: 90mm diameter; 116mm length; 3m cable each (stator & rotor) Gold on gold contact technology Lifetime: up to 50 million revolutions Average speed: 200 rpm (max. 400 rpm) Protection class: IP50 Housing: aluminum Operating temperature: -20°C to +70°C The slip ring can be used for PROFIBUS-DP, PROFIBUS-FMS and FIP. The slip ring is delivered without a plug - the plug assembly is carried out individually by the customer. Typical fields of application: Production lines in large industrial factories (e.g. battery manufacturing lines - automotive, food industry) Manufacturing systems in various industrial areas (rotary tables, classic mechanical engineering e.g. tools)
