Rotary table slip ring 7KM000155
for medical equipmentfor generatorsdistribution

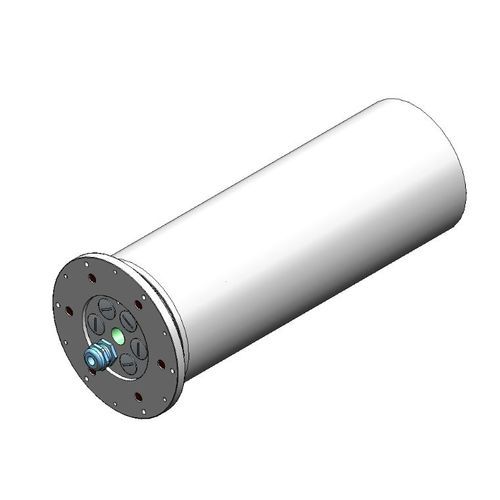

Rotary table slip ring - 7KM000155 - SCHLEIFRING GmbH - for medical equipment / for generators / distribution
Rotary table slip ring - 7KM000155 - SCHLEIFRING GmbH - for medical equipment / for generators / distribution
Add to favorites
Compare this product

Characteristics

Applications
for rotary tables, for medical equipment, for generators, distribution, for alternator, for packaging, for robotics, for the lighting industry, for stage lighting, industrial, packaging machine, for spray irrigation machines, for sensors, for measurement instruments, for robots, for cranes, for test benches, for research and development, for electric motors, for cable reels, for wrapping machines, for strain gauges, for machine tools
Material
aluminum
Other characteristics
with gold contacts, flange, high-performance, low-torque, low-maintenance, cost-effective, rugged, IP50, high-voltage
Voltage

630 V

Primary current

25 A

Rotational speed

Min.: 150 rpm
(942 rad.min-1)

Max.: 300 rpm
(1,885 rad.min-1)

External diameter

Min.: 140 mm
(5.51 in)

Max.: 170 mm
(6.69 in)

Description

One of the most frequently ordered configurations is our MIA slip ring with the A-power modules (630 V - 25 A) and flange. The slip rings are manufactured in our production in Fürstenfeldbruck (Made in Germany). The slip ring can be individually adjusted using the MIA configurator. This is a best-selling configuration suggestion. Among the downloads you will find the MIA product brochure, which explains the construction kit in detail. 4x A-module: each module has 3 tracks plus PE (630V - 25 A each) Dimensions: 140 mm diameter; 406 mm length; 3m cable each (stator & rotor) Flange diameter: 170 mm Gold on gold contact technology Lifetime: up to 50 million revolutions Average speed: 150 rpm (max. 300 rpm) Protection class: IP50 Housing: aluminum Operating temperature: -20°C to +70°C Each A-module has three power tracks and one PE. The slip ring is delivered without a plug - the plug assembly is carried out individually by the customer. Typical fields of application: Production lines in large industrial factories (e.g. battery manufacturing lines - automotive, food industry) Manufacturing systems in various industrial areas (rotary tables, classic mechanical engineering) Drives Heaters
