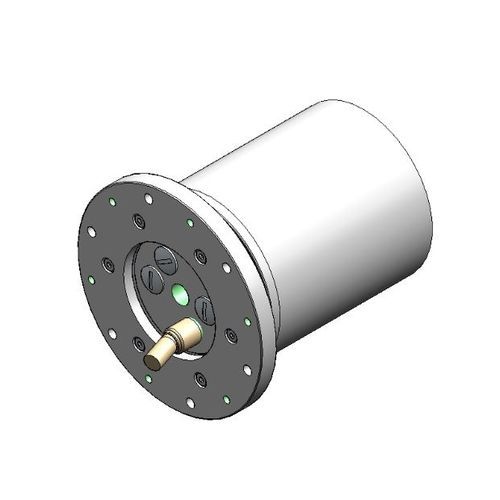

CC-Link slip ring 7KM000071

roboticfor cable reelsindustrial

One of the most frequently ordered configurations is our MIA slip ring with power module (250 V - 16A), CC-Link module and flange. The slip rings are manufactured in our production in Fürstenfeldbruck (Made in Germany). The slip ring can be individually adjusted using the MIA configurator. This is a best-selling configuration suggestion. Among the downloads you will find the MIA product brochure, which explains the construction kit in detail. C-module: Power via 4 ways plus PE (250 V - 16 A each) CC-Link (10 Mbit). 2x CC link. Dimensions: 90mm diameter; 116mm length; 3m cable each (stator & rotor) Flange diameter: 120 mm Gold on gold contact technology Lifetime: up to 50 million revolutions Average speed: 200 rpm (max. 400 rpm) Protection class: IP50 Housing: aluminum Operating temperature: -20°C to +70°C The C-module has four power tracks and one PE. The CC-Link module has 2x CC-Link (shielded) and 3x reserve tracks. The slip ring is delivered without a plug - the plug assembly is carried out individually by the customer. Typical fields of application: Production lines in large industrial factories (e.g. battery manufacturing lines - automotive, food industry) Manufacturing systems in various industrial areas (rotary tables, classic mechanical engineering) drives Heaters
