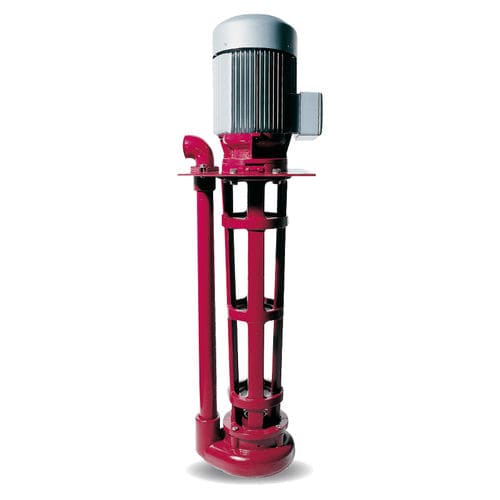

Impeller pump Zfilterwaterwith electric motor
Add to favorites
Compare this product
Characteristics
- Technology
- impeller, filter
- Fluid
- water
- Operation
- with electric motor
- Priming
- self-priming
- Mobility
- stationary
- Domain
- industrial
- Applications
- process, service
- Voltage
- 400 V, 460 V, 380 V
- Protection level
- maintenance-free, immersion
- Other characteristics
- with cover
- Flow
Max.: 120 m³/h
(4,237.76001 ft³/h)Min.: 0 m³/h
(0 ft³/h)- Head
Max.: 57 m
(187'00" )Min.: 0 m
(0'00" )- Power
3 kW, 4 kW
(4.08 hp, 5.44 hp)
Description
Immersion pumps type Z are characterized by a high reliability and a verified design. The proven design ensures maintenance-free operation, perfect functionality and a long service life under most difficult operating conditions. Chemically neutral as well as aggressive media, e.g. alkaline solutions, acids, solvents and lubricants can be pumped easily. This makes this series particularly suitable for use in machine tools, filter systems and environmental technology.
Features
Proven design
Energy-efficient, maintenance-free
Individually configurable
Various immersion depths (250, 320, 450, 550, 750 or 1,000 mm)
Closed impeller for high efficiency
With cover plate for the tank
Characteristic field extendable with the use of a variable speed drive
Free ball passage up to 10 mm
Also available with 4-pole motor
Areas of application
Supply pump for machine tools
Filtration technology
Surface technology
Process engineering
Environmental technology
