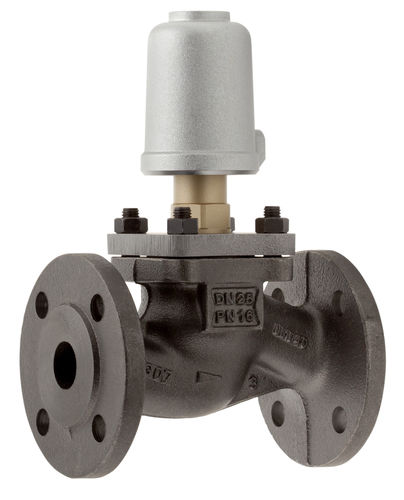

Pneumatically-operated valve 7030shut-offfor gasflange
Add to favorites
Compare this product
Characteristics
- Operation
- pneumatically-operated
- Function
- shut-off
- Media
- for gas
- Body$
- flange
- Material$
- stainless steel
- DN
Min.: 15 mm
(0.591 in)Max.: 150 mm
(5.906 in)- Pressure
16 bar
(232.1 psi)- Temperature
Min.: -10 °C
(14 °F)Max.: 200 °C
(392 °F)
Description
The flange valve with a body made of gray cast iron or ductile iron in installation length and flange pattern according to DIN.
•Size:
DN 15 - DN 150
•Pressure:
PN 16
•Material:
EN-GJS-400-18-LT (GGG 40.3)
•Temperature:
Media temperature -10°C to +170 °C
Applicatons up to +200 °C
Connection:
Flange acc. to DIN EN 1092-1
Accessories:
Brass, stainless steel or fibre enforced plastic hood
Limit switch
Pilot valve
Manual override
version with pressure relief
Application:
Gases, vapours, fluids
