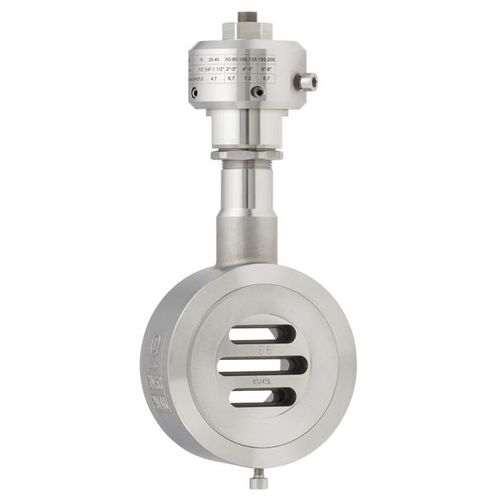

Sliding gate valve 8090 GS1manualflow controlfor chlorine
Add to favorites
Compare this product
Characteristics
- Type
- sliding gate
- Operation
- manual
- Function
- flow control
- Media
- for chlorine, for water, for inert gases, for oil, for acids, for oxygen, for solvents, biogas, propane, for paint, for acetylene, petroleum, for bases, for CO2, for air, diesel, for steam, for gasoline, for alternative fuels, for liquefied petroleum gas, for natural gas, for compressed air, for liquified gas, for liquefied natural gas
- Body
- wafer
- Applications
- for marine applications, for industrial applications, chemical, for burners, for water systems, industrial, for heating, for process applications, liquids, for pipes, for motors
- Material
- stainless steel, carbon steel
- Number of channels
- 2/2-way
- Associated function
- calibration
- Other characteristics
- corrosion-resistant, compact, DIN, for corrosive fluids, low-noise, for hydrogen, chemical-resistant, for medium-viscosity products, for ammonia, for flammable liquids, for exhaust gas, for corrosive environments, for dangerous fluids, for compressible fluids, for sour gas, medium-pressure, for hazardous fluids, variable-flow, for hazardous environments, for compressed gas, for aggressive media, for nitrogen
- DN
Max.: 150 mm
(5.906 in)Min.: 15 mm
(0.591 in)- Pressure
Max.: 40 bar
(580.2 psi)Min.: 0 bar
(0 psi)- Temperature
Max.: 350 °C
(662 °F)Min.: -60 °C
(-76 °F)
Description
Product line GS1
The adjustable sliding gate orifice type 8090 is suitable for precise and continuous adjustment of a defined flow. It can be adjusted and secured manually in the installed state during operation. Among other things, the orifice facilitates the hydraulic adjustment of cooling systems, e.g. when commissioning large engines in CHPs and on ships.
Size:
DN15 - DN150
Pressure:
PN 10/40
Material:
Stainless steel 1.4581 / 1.4408
Carbon steel 1.0619
Temperature:
Media temperature: -60°C up to 350 °C
Connection -
Wafer type design
Actuator variants -
Manual adjustment
