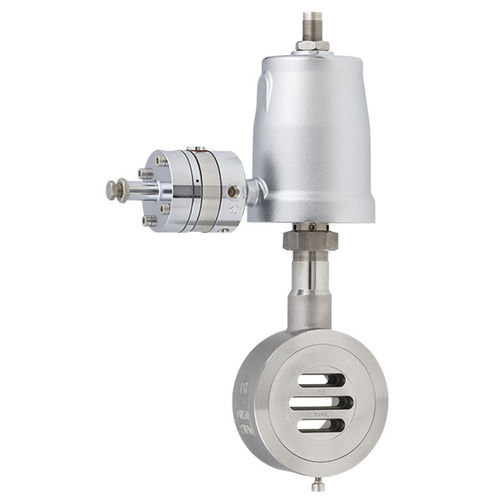

Sliding gate valve 8042 GS1pneumatically-operatedfor controlpressure-reducing
Add to favorites
Compare this product
Characteristics
- Type
- sliding gate
- Operation
- pneumatically-operated
- Function
- for control, pressure-reducing, pressure-control, hydraulic pressure-control, pneumatic pressure-control
- Media
- for water, for oil, for chemical products, for fuel, for liquefied petroleum gas, for LPG, petroleum, for petroleum
- Body
- wafer
- Applications
- for industrial applications, for the chemical industry, for process applications, for liquids, for the gas industry, high-precision
- Material
- stainless steel, carbon steel
- Number of channels
- 2/2-way
- Fluid specification
- for aggressive media, for corrosive fluids
- Associated function
- filling
- Other characteristics
- for corrosive fluids, DIN, normally open, chemical-resistant, medium-pressure, remote control, pneumatic-drive, for aggressive media, for nitrogen, grease, for hazardous fluids
- DN
Max.: 150 mm
(5.906 in)Min.: 15 mm
(0.591 in)- Pressure
Max.: 40 bar
(580.2 psi)- Temperature
Max.: 230 °C
(446 °F)Min.: -10 °C
(14 °F)
Description
Product line GS1
The pressure regulator type 8042 is a smart combination of a pilot pressure regulator with a sliding gate control valve and is excellently suited for gases and vapors. The pressure regulator, which operates with auxiliary pneumatic energy, is characterized by highest dynamics and control quality. External or manual set point adjustment completes the compact and simple design of the valve and regulator.
Size:
DN15 - DN150
Pressure:
PN 10/40
Material:
Stainless steel 1.4581 / 1.4408
Carbon steel 1.0619
Temperature:
Media temperature: -10 °C up to 230 °C
Special versions available on request.
Connection -
Wafer type design
Accessories -
Metal bellows
Limit switch
Stroke limitation
. . .
Body variants -
Long or short version possible.
Versions -
Control range 0,05 - 1,0 bar
Control range 0,5 - 6,0 bar
Control range 0,5 - 2,5 bar
