Globe valve 7027 IO-Linkpneumatically-operatedelectropneumaticcontrol
Add to favorites
Compare this product
Characteristics
- Type
- globe
- Operation
- pneumatically-operated, electropneumatic
- Function
- control, regulating
- Media
- for water, for oil, beverage, for chemical products, for fuel, for liquefied petroleum gas, for LPG, LPG
- Body
- welded, explosion-proof, stainless steel
- Applications
- for water, for industrial applications, for the chemical industry, for process applications, for liquids, for dirty environments, for heating, for the gas industry, for pipe, for the petroleum industry, for explosive atmospheres, for precision applications, beverage, for automation
- Number of channels
- 2/2-way
- Fluid specification
- for aggressive media, for corrosive fluids, for fluids with lubricating properties, for flammable fluids, for low-viscosity fluids, for medium-viscosity products
- Associated function
- for filling applications
- Other characteristics
- automatic, ISO, high-performance, normally closed, corrosion-resistant, with actuator, normally open, chemical-resistant, pneumatic piston, with integrated positioner, pneumatically-operated, high-performance, with I/O link, waterproof, for corrosive environments
- DN
Max.: 50 mm
(1.969 in)Min.: 15 mm
(0.591 in)- Pressure
Max.: 40 bar
(580.2 psi)Min.: 0 bar
(0 psi)- Temperature
Max.: 220 °C
(428 °F)Min.: -30 °C
(-22 °F)
Description

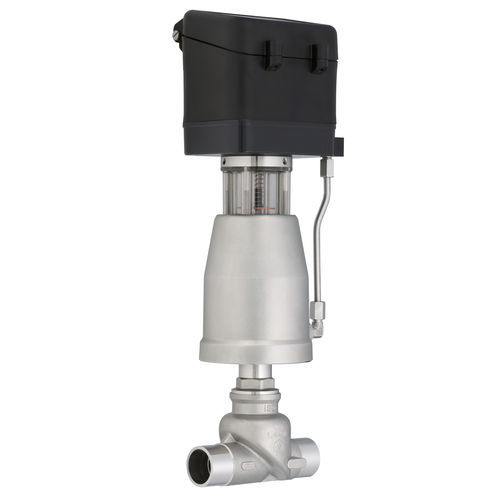

Pneumatically operated globe valve type 7027 with integrated positioner (type 8049 with IO-Link) for control applications with neutral to highly aggressive media. The straight design enables a highly efficient and very simple insulation of the valve body as well as the welded-on pipeline.
