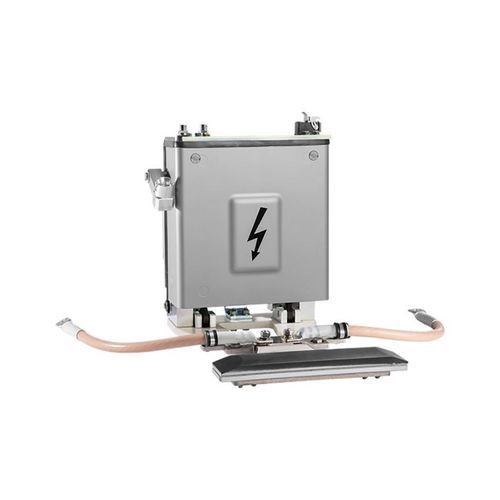

Vehicle commutator

for railway vehiclesfor trainrail-mounted

Product overview
Third-rail current collectors for metro, subway and monorail vehicles, designed to provide continuous electrical contact and safe power transmission into the vehicle. Constructed from high-grade materials to withstand heavy-duty operating conditions. Typical current transmission is approx. 1000 A at 700 V. Protective measures against flying sparks and insulating shields (Arc Shield) are available. The product family includes both spring-operated and pneumatically operated systems, with mounting options that vary by model.

Key advantages

• Wide application range with approximately 40 designs and options for customization
• Contacting from top, bottom, lateral or multi-sided to suit conductor-rail layouts
• Patented multi-system collectors capable of brushing conductor rails from below and above
• Optional second insulation level for protection against metallic debris from the track bed
• Optional collector shoe catcher to prevent loss of collector shoes
• Integrated or separate fuse boxes with vibration-protected special fuses to protect vehicle electronics and systems

Variants and mounting
Available as spring-operated or pneumatically operated systems. Mounting depends on the model and can be on the bogie or at the axle end. Optional protective equipment includes Arc Shield and a second insulation level. A range of accessories such as short-circuiters, fuse boxes (with vibration-protected fuses), sensors and collector strips is available.

Technical characteristics / specifications

• Model name: 3rd Rail Collector Shoe
• Current transmission: approx. 1000 A at 700 V
• Designs: approx. 40 different versions; customizable
• Contacting options: from top, from bottom, lateral or multi-sided
• Patented multi-system collectors for brushing conductor rails from below and above
• Drive/operation: spring-operated systems; pneumatic systems
• Mounting: on bogie or at end of axle (model-dependent)
• Protection: Arc Shield (insulating protective shield) available
• Optional second insulation level for debris protection
• Optional collector shoe catcher to prevent loss of collector shoes
• Accessories: short-circuiters, integrated or separate fuse boxes with vibration-protected fuses, sensors, collector strips
