Railway vehicle commutator

Product description

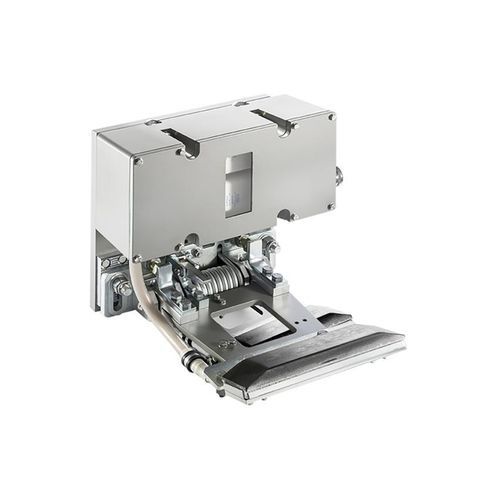

Third-rail current collector with an integrated, weatherproof fuse box designed for metro, subway and monorail vehicles. The fuse box is made from approved materials suitable for railway applications and protects sensitive on-board electronics and cabling against electrical faults while shielding fuses from mechanical stress such as shocks and vibrations. Fuses are accessible and replaceable without disconnecting cables.

You benefit from these advantages:

• Standardized fuse box in weatherproof housing
• Material approved for railway use, including Fire & Smoke approvals
• Compatibility with various fuse sizes and designs
• Reliable mechanical protection against shocks and vibrations
• Simple fuse replacement without cable disconnection
• Optional indicator switch for visual/electrical blown-fuse detection
• Customizable cable routing to customer requirements

Functional details
Optional indicator switches provide visual or electrical signals when a fuse has blown and requires replacement. The fuse box can be installed as a separate subsystem mounted to the bogie independently of the current collector, or supplied as a compact unit integrated with the current collector. Cable entry and routing are executed according to the customer's specifications.

Technical characteristics / specifications

• Application: metro, subway, monorail
• Housing: weatherproof, standardized design
• Material: approved for railway use (including Fire & Smoke approvals)
• Accommodates multiple fuse sizes and constructions
• Fuses replaceable without disconnecting cables
• Protection against shocks and vibrations
• Optional visual/electrical indicator switch for blown-fuse detection
• Mounting options: as separate bogie-mounted subsystem or integrated compact unit with current collector
• Custom cable routing according to customer requirements
