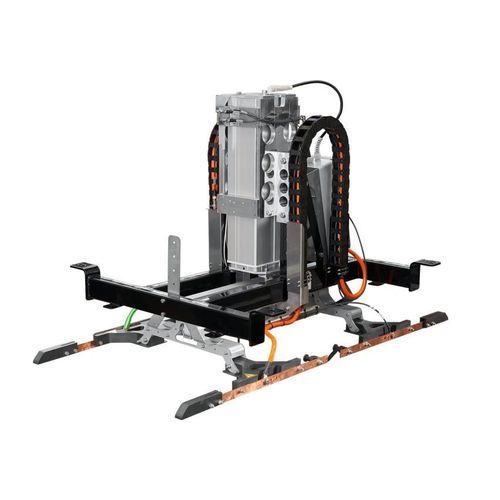

Electric vehicle charging station SLS 301

DCoutdoor

Overview
Depot charging with automated current collectors enables vehicles of different heights to be docked in the vehicle depot within seconds. The charging process happens overnight to avoid large short-term power draws. The system is compact and cost-efficient, designed for depot integration.

Key Features

• Charging time: gentle continuous charging (overnight depot charging)
• Charging power: 200 kW standard (higher power on request)
• Set-up principle: Top-Down (inverted pantograph)
• Charging concepts: Depot Charging and Opportunity Charging

Applications — Depots, Gas Stations or other Private Areas
Inverted charging systems can be installed at vehicle depots, service stations or other private sites to provide electric intercity buses with an uncomplicated charging option and extended range. Using high-power charging up to 600 A continuously at 1,000 Vdc (600 kW), vehicles can receive up to 150 kWh within about 10 minutes, suitable for quick turnarounds. The system is automated and wireless, eliminating cables and plugs.

Extended Charging Modes

• High-power charging: up to 600 kW
• Charging concepts: Opportunity Charging, Flash Charging

Advantages

• Vehicles can park with positional tolerance; an automatic signal establishes the connection to the charging unit

Technical specifications

• Model: SLS 301
• Charging time: gentle continuous charging (overnight depot charging)
• Standard charging power: 200 kW
• High-power charging option: up to 600 kW (up to 600 A at 1,000 Vdc)
• Energy boost capability: up to 150 kWh in approx. 10 minutes (flash/high-power charging)
• Set-up principle: Top-Down (inverted pantograph)
• Charging concepts supported: Depot Charging, Opportunity Charging, Flash Charging
• Automated pantograph/current collector docks vehicles in seconds
• Designed for vehicles of different heights with parking tolerance
• Compact and cost-efficient design
• Higher charging power available on request
• Automated and wireless operation
