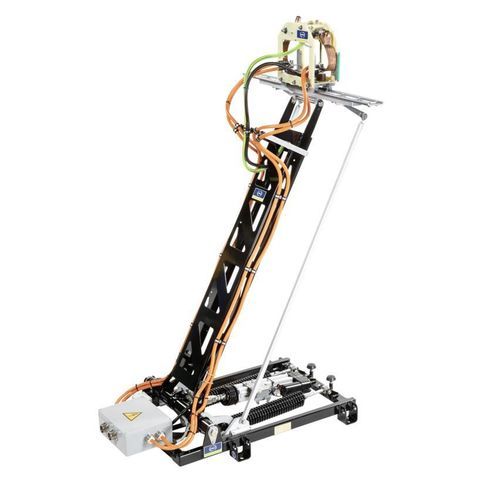

DC pantograph SLS series

compact

Overview
The compact roof-mounted pantographs SLS 102 and SLS 103 are installed on the roof of e-buses and operate according to the "Bus-Up" principle: the vehicle stops under a charging station, the pantograph extends, connects to the charger and charges the batteries. These pantographs enable depot and in-service fast charging within seconds and are adaptable to various vehicle types and customer requirements through patented contact systems.

Key data

• Charging time: from 30 seconds to overnight charging
• Charging power: 150 kW up to 1 MW
• Set-up principle: "Bus-Up"
• Charging concepts: opportunity charging, flash charging and depot charging

Benefits / Description
The SLS 102 and SLS 103 deliver very fast contacting and high current transmission, allowing charging without delaying regular operations. The compact roof-mounted design suits e-buses and battery-powered industrial vehicles and supports both depot and on-route charging scenarios with high reliability and adaptability.

Contact Systems
Different contact modules can be selected depending on site conditions and existing infrastructure. Available contact systems:

• 2-pole
• 3-pole
• 4-pole
• 5-pole

The system complies with EN 50696.

Compensation of Parking Tolerances
The drive mechanisms compensate for vehicle movements and parking tolerances during charging:

• ± 500 mm in direction of travel
• ± 250 mm parallel to direction of travel
• 4° kneeling

Current Transmission
To balance battery size, passenger load and range, the following power transfer modes are possible:

• Pulse charging: 1 MW for 30 s
• Opportunity charging: 500 A for 15 min
• Depot charging: 150 kW continuous

All charging modes can be managed with a single system.

Technical specifications

• Models: SLS 102 and SLS 103
• Application: roof-mounted pantograph for e-buses and battery-powered industrial vehicles
• Charging time: from 30 seconds to overnight charging
• Charging power range: 150 kW up to 1 MW
• Set-up principle: "Bus-Up"
• Charging concepts supported: opportunity charging, flash charging, depot charging
• Contact systems: 2-, 3-, 4- and 5-pole
• Standardization: EN 50696
• Parking tolerance compensation: ±500 mm (direction), ±250 mm (parallel), 4° kneeling
• Pulse charging capability: 1 MW/30 s; Opportunity charging: 500 A/15 min; Depot charging: 150 kW continuous
