Hydraulic hose HOS-PT1
for compressed airPTFEindustrial

Hydraulic hose - HOS-PT1 - Schwer Fittings - for compressed air / PTFE / industrial
Hydraulic hose - HOS-PT1 - Schwer Fittings - for compressed air / PTFE / industrial
Hydraulic hose - HOS-PT1 - Schwer Fittings - for compressed air / PTFE / industrial - image - 2
Add to favorites
Compare this product

Characteristics

Use
hydraulic, for compressed air
Material
PTFE
Applications
industrial
Other characteristics
extruded, smooth, steel-braided
Inner diameter

Max.: 25 mm
(0.984 in)

Min.: 6.4 mm
(0.252 in)

Outer diameter

Max.: 30 mm
(1.181 in)

Min.: 10 mm
(0.394 in)

Pressure

Max.: 224 bar
(3,248.845 psi)

Min.: 80 bar
(1,160.302 psi)

Temperature

Max.: 260 °C
(500 °F)

Min.: -70 °C
(-94 °F)

Description

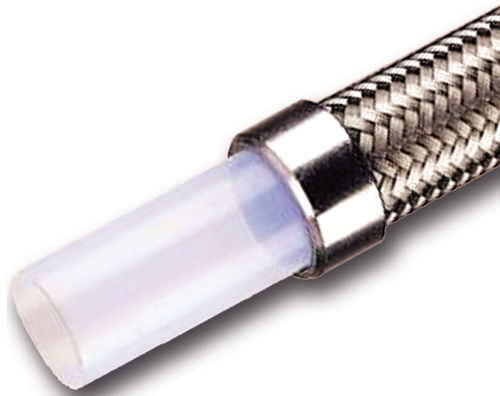

Type PT1 with smooth bore in PTFE and single layer steel braid Material of core material: PTFE, Material of steel braiding: 1.4301 – AISI 304, Temperature: -70° C to 260° C. Hose assemblies can be supplied with a variety of hose connectors.
