Video storage server reServer

GPUEDGEAI edge

Overview

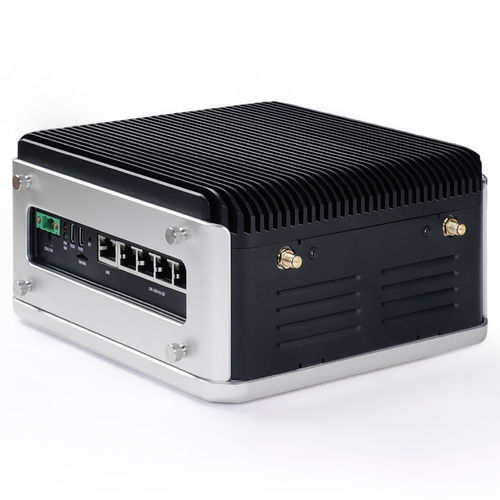

The reServer Industrial Jetson™ Series delivers industrial-grade edge AI and NVR capabilities using NVIDIA Jetson Orin modules. Designed for continuous, fanless operation in wide temperature ranges, the series supports real-time video processing, multi-stream analytics and industrial I/O for integration with automation and surveillance systems.

Key Features

• Fanless compact edge AI server: Powered by NVIDIA Jetson Orin modules up to 100 TOPS (Orin NX); optimized for deployment in harsh industrial environments with operating range -20 ~ 60°C.
• Multi-stream video processing: Five GbE RJ45 ports (4 with 802.3af PSE) to support multiple camera streams and real-time analytics for surveillance and VMS applications.
• Expandable storage: Two 2.5" SATA drive bays plus an M.2 2280 NVMe socket for flexible capacity and extended video retention.
• Industrial connectivity: COM (RS232/RS422/RS485), DI/DO, CAN, USB3.1 and optional TPM2.0 for secure automation integration.
• Hybrid wireless options: Supports optional 5G/4G/LTE and LoRaWAN modules via Nano SIM slot for remote or distributed installations.
• Pre-installed JetPack and software ecosystem: Ready-to-run JetPack system with support for AI model deployment, CVEDIA-RT analytics packages and no-code workflow tools for rapid implementation.

Model Selection
Model | Processor | AI Performance | Memory | GPU Cores | DL Accelerator
J4012 | Orin NX 16GB | 100 TOPS | 16GB 128-bit LPDDR5 | 1024-core + 32 Tensor | 2x NVDLA v2
J4011 | Orin NX 8GB | 70 TOPS | 8GB 128-bit LPDDR5 | 1024-core + 32 Tensor | 1x NVDLA v2
J3011 | Orin Nano 8GB | 40 TOPS | 8GB 128-bit LPDDR5 | 1024-core + 32 Tensor | -
J3010 | Orin Nano 4GB | 20 TOPS | 4GB 64-bit LPDDR5 | 512-core + 16 Tensor | -

Additional Product Details
Smart storage reduces bandwidth and cloud costs by uploading only relevant events. The platform supports ready-made AI models (face, vehicle, people detection, crowd estimation) and enables no-code video analytics workflows via drag-and-drop tools. Documentation and best-practice guides cover data collection, annotation, model training/optimization and remote management.

Technical specifications

• Jetson Module: Orin NX 16GB / Orin NX 8GB / Orin Nano 8GB / Orin Nano 4GB
• AI Performance: 100 / 70 / 40 / 20 TOPS (model dependent)
• GPU: NVIDIA Ampere-based GPU (1024-core with 32 Tensor Cores for Orin NX; 512-core with 16 Tensor Cores for Orin Nano 4GB)
• CPU: Arm Cortex-A78AE (8-core for Orin NX; 6-core for other Orin variants)
• Memory: 16GB/8GB/4GB LPDDR5 (model dependent)
• DL Accelerator: 2x NVDLA v2 / 1x NVDLA v2 / -
• Operating temperature: -20 ~ 60°C (with 0.7 m/s airflow)
• Dimensions (W x D x H): 194.33 mm x 187 mm x 95.5 mm
• Weight: 2.8 kg
• Power: DC 12V–36V via 2-pin terminal block
• Ethernet: 1x RJ45 GbE + 4x RJ45 GbE PoE (PSE 802.3af)
• Storage: 2x 2.5" SATA bays + M.2 NVMe 2280
• Industrial I/O: 4x DI/DO, RS232/RS422/RS485, CAN, USB3.1
