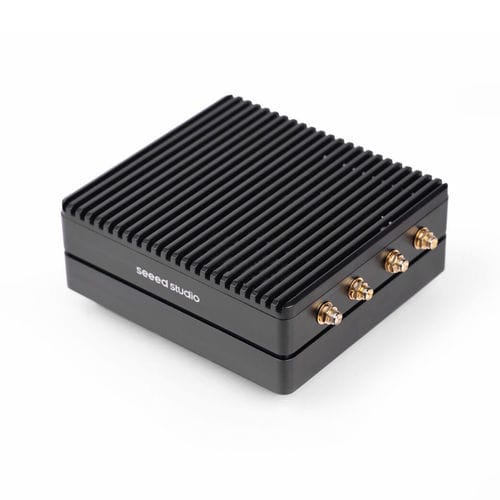

Box computer reComputer Classic

Edge AIembeddedwall-mounted

Product overview
The reComputer Classic Jetson™ series is a compact industrial edge AI computer family compatible with NVIDIA® Jetson™ Orin™ modules (Jetson Orin Nano and Orin NX). Models offer AI performance from 20 TOPS to 100 TOPS and a wide set of I/O for embedded and edge deployments.

Key features

• Module support: Jetson Orin Nano (4GB/8GB) and Jetson Orin NX (8GB/16GB).
• AI performance: 20 TOPS (original mode) to 100 TOPS depending on module and mode.
• Rich I/O: HDMI 2.1, up to 4x USB 3.2 Type-A, USB2.0 Type-C (device), Gigabit Ethernet, M.2 Key M (NVMe), M.2 Key E (Wi‑Fi), mini-PCIe (LTE), CAN, 40-pin GPIO, 12-pin control/UART header.
• Storage & software: pre-installed 128GB NVMe SSD and JetPack-ready Linux BSP for rapid development.
• Certifications & lifecycle: ROHS, CE, FCC, KC, UKCA, REACH; production lifecycle guaranteed until at least 2032.

Hardware overview
The product uses a modular design for flexible installation (desktop, wall mount). Fan connector (JST 4-pin) and RTC socket included. Typical dimensions 130 x 120 x 58.5 mm and weight approx. 452 g.

Application scenarios

• Smart lampposts: traffic monitoring and sensor fusion.
• EV charging and battery swap systems: station management and grid integration.
• Smart recycling centers: sensor-driven sorting and operational optimization.
• Other: AI video analytics, machine vision, robotics, generative AI and computer vision model deployment.

Model selection summary

• J3010 — Jetson Orin Nano 4GB: AI ~20–34 TOPS; 4GB LPDDR5; pre-installed 128GB NVMe.
• J3011 — Jetson Orin Nano 8GB: AI ~67 TOPS; 8GB LPDDR5; pre-installed 128GB NVMe.
• J4011 — Jetson Orin NX 8GB: AI ~100 TOPS; 8GB LPDDR5; pre-installed 128GB NVMe.
• J4012 — Jetson Orin NX 16GB: AI ~100 TOPS; 16GB LPDDR5; pre-installed 128GB NVMe.

Interfaces and environment

• Display: 1x HDMI 2.1.
• Camera: 2x CSI (2-lane 15-pin).
• Networking: 1x Gigabit Ethernet; optional Wi‑Fi via M.2 Key E; LTE via mini-PCIe.
• USB: product-dependent up to 4x USB 3.2 Type-A and 1x USB2.0 Type-C (device).
• Storage/expansion: 1x M.2 Key M (NVMe); 1x M.2 Key E; 1x mini-PCIe.
• Power & operating range: DC 9–19V via 5525 DC jack; operating temperature -10 °C to 60 °C.

Technical specifications

• Dimensions: 130 x 120 x 58.5 mm. Weight: ~452 g.
• CPU/GPU: Arm® Cortex®-A78AE cores and NVIDIA Ampere GPU (512 or 1024 cores) with 16/32 Tensor Cores depending on module.
• Memory bandwidth: 34 GB/s to 102.4 GB/s depending on module.
• Warranty: 2 years. Production lifetime: until at least 2032. Options marked with * require additional purchase.
