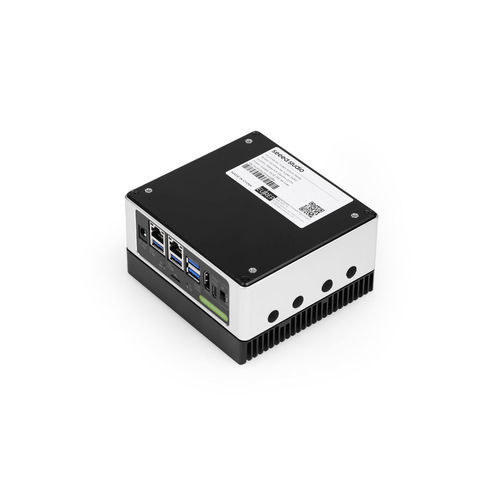

Edge AI computer reComputer Super

embeddedNVIDIA® Jetson Orin™ NanoNVIDIA® Jetson Orin™ NX

Overview
The reComputer Super Jetson™ Series is an intelligent edge AI system based on the NVIDIA® Jetson™ Orin™ platform, delivering AI performance from 34 TOPS to 157 TOPS (Super/MAXN modes). It targets high-demand industrial applications including vision AI, robotics, generative AI, AMR, smart retail, industrial automation and video surveillance. The platform provides configurable power profiles, enhanced thermal management, accelerated frame-rate processing and is pre-configured for rapid deployment of common Jetson workloads.

Key Features

• AI Performance Range: 34 TOPS (Orin Nano 4GB) up to 157 TOPS (Orin NX 16GB) in MAXN/SUPER modes for advanced vision and generative AI tasks.
• Configurable Power Profiles: Selectable modes from 7W up to 40W to balance performance and energy consumption.
• Wide Operating Temperature: Rated for reliable operation from -20°C to 65°C depending on mode.
• Extensive I/O and Connectivity: 2× RJ45 Gigabit Ethernet, SIM slot (mini-PCIe LTE), 4× USB 3.2 Type-A, HDMI 2.1, CAN header, M.2 Key E/M, mini-PCIe, and 4× MIPI CSI camera interfaces.
• Deployment Ready: Ships with JetPack 6.2 pre-installed and includes a 128GB M.2 NVMe SSD for immediate development and testing.
• Wireless Options: Built-in support for Wi‑Fi/BT and LTE (via modules) plus dual Ethernet for robust video and multimodal perception use cases.

Model Selection (Product Model | Processor | AI Performance | Memory | Power | GPU Max Frequency | CPU Max Frequency)
J3010 | NVIDIA Orin™ Nano 4GB | 34 TOPS (MAXN_SUPER) | 4GB LPDDR5 | 7W - 10W - 25W | 1020 MHz | 1.7 GHz
J3011 | NVIDIA Orin™ Nano 8GB | 67 TOPS (MAXN_SUPER) | 8GB LPDDR5 | 7W - 15W - 25W | 1020 MHz | 1.7 GHz
J4011 | NVIDIA Orin™ NX 8GB | 117 TOPS (MAXN) | 8GB LPDDR5 | 10W - 15W - 25W - 40W | 1173 MHz | 2.0 GHz
J4012 | NVIDIA Orin™ NX 16GB | 157 TOPS (MAXN) | 16GB LPDDR5 | 10W - 15W - 25W - 40W | 1173 MHz | 2.0 GHz

Jetson Module Specifications (Specification | J3010 | J3011 | J4011 | J4012)
Applications Processor (AP) | NVIDIA Orin™ Nano 4GB | NVIDIA Orin™ Nano 8GB | NVIDIA Orin™ NX 8GB | NVIDIA Orin™ NX 16GB
AI Performance | 34 TOPS (MAXN_SUPER) | 67 TOPS (MAXN_SUPER) | 117 TOPS (MAXN) | 157 TOPS (MAXN)
Memory | 4GB 64-bit LPDDR5 DRAM | 8GB 128-bit LPDDR5 DRAM | 8GB 128-bit LPDDR5 DRAM | 16GB 128-bit LPDDR5 DRAM
Power | 7W - 10W - 25W | 7W - 15W - 25W | 10W - 15W - 25W - 40W | 10W - 15W - 25W - 40W
Operating Temperature | -20°C ~ 65°C | -20°C ~ 65°C | -20°C ~ 65°C (25W Mode)
-20°C ~ 60°C (MAXN Mode) | -20°C ~ 65°C (25W Mode)
-20°C ~ 60°C (MAXN Mode)

Carrier Board Specifications

• Storage: 1× M.2 Key M PCIe (M.2 NVMe 2242 SSD 128GB included)
• Networking: 1× M.2 Key E for Wi‑Fi/BT module; 1× mini-PCIe for LTE 4G module; 2× RJ45 Gigabit Ethernet
• I/O: 4× USB 3.2 Type-A (5 Gbps); 1× USB 2.0 Type-C (device/debug); 4× MIPI CSI (2-lane 15-pin); 1× CAN (4-pin header); 1× HDMI 2.1
• Power Input: 12–19V via 5525 barrel DC jack
• JetPack Version: JetPack 6.2
• Dimensions (W × D × H): 130 mm × 120 mm × 66 mm
• Weight: 1110 g
• Warranty: 2 Years
• Certifications: RoHS, REACH, CE, FCC, UKCA, KC

Applications and Software
Designed for edge AI computer vision and multimodal perception, the platform supports NVIDIA AI software stacks and Jetson Platform Services to streamline development, deployment and management. The system is pre-configured with common Jetson examples and one-line deploy projects for computer vision (e.g., YOLOv8), generative AI and other workloads to reduce time-to-prototype.

Technical specifications

• Product family: reComputer Super Jetson™ series
• Available SKUs: J3010, J3011, J4011, J4012
• AI performance range: 34 TOPS – 157 TOPS (module and mode dependent)
• Memory: 4GB / 8GB / 16GB LPDDR5 depending on module
• Power modes: selectable profiles spanning 7W–40W
• GPU max frequency: up to 1173 MHz
• CPU max frequency: up to 2.0 GHz
• Operating temperature: -20°C to 65°C (varies by mode)
• On-board storage: M.2 Key M (NVMe 2242) — 128GB NVMe SSD included
• Networking: dual Gigabit Ethernet, optional Wi‑Fi/BT via M.2 Key E, optional LTE via mini-PCIe
• I/O: 4× USB 3.2, 1× USB-C (device/debug), HDMI 2.1, CAN header, 4× MIPI CSI
• Power input: 12–19V DC (5525 barrel jack)
• Pre-installed software: JetPack 6.2
• Dimensions & weight: 130×120×66 mm; 1110 g
• Included documents: user manual, schematic, temperature test report, other technical PDFs
• Certifications: RoHS, REACH, CE, FCC, UKCA, KC
