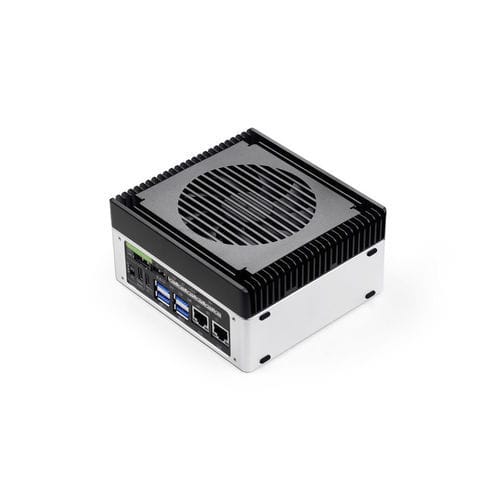

Edge AI computer reComputer Robotics series

AI Inferencedesktopembedded

Product Overview
reComputer Robotics Series by Seeed Studio is a compact edge AI computer family built for rapid development and deployment in robotics and industrial applications. Based on NVIDIA Jetson Orin modules, the series delivers up to 157 TOPS of AI performance, extensive I/O (USB, Ethernet, CSI, CAN) and wide DC input for mobile and industrial power systems. Pre-installed with JetPack 6.2 and a Linux BSP, units are ready for immediate integration into computer vision and autonomous platforms.

Key Features

• High AI performance: Supports NVIDIA Jetson Orin modules delivering up to 157 TOPS (model dependent) for demanding inference and perception tasks.
• Robotics‑centric interfaces: Dual Gigabit Ethernet, 6x USB 3.2, USB‑C (DP host), multiple CAN ports, MIPI CSI‑2 camera lanes, I2C and UART — designed for multi‑sensor robotic systems.
• Modular expansion: M.2 Key M for NVMe storage, Key E for Wi‑Fi/BT and Key B for 5G modules; optional GMSL2 camera expansion header.
• Software-ready: Ships with JetPack 6.2 and Linux BSP plus Jetson examples to accelerate AI deployment.
• Wide power and thermal range: 19–54V DC input; operates reliably from –20°C to 60°C (25W) and up to 55°C in MAXN mode with recommended cooling.
• Super Mode for performance tuning: Advanced power management to increase frame rates and reduce inference latency on intensive workloads.

Super Mode Highlights

• Optimized power allocation for higher sustained performance.
• Improved frame‑rate processing for multi‑camera pipelines.
• Lower inference latency for real‑time AI tasks.

Models & Key Specifications

• J3011 — NVIDIA Jetson Orin Nano: 40 TOPS (MAXN), 8GB LPDDR5, 128GB NVMe SSD (default), module power range 7–15W.
• J4011 — NVIDIA Jetson Orin NX: 100 TOPS (MAXN), 8GB LPDDR5, 128GB NVMe SSD (default), module power range up to 25W.
• J4012 — NVIDIA Jetson Orin NX (16GB): 157 TOPS (MAXN), 16GB LPDDR5, 128GB NVMe SSD (default), module power range up to 40W.

Carrier Board Highlights

• Storage & expansion: 1x M.2 Key M (NVMe), 1x M.2 Key E (Wi‑Fi/BT), 1x M.2 Key B (5G).
• Networking & I/O: 2x RJ45 Gigabit Ethernet, 6x USB 3.2 Type‑A, USB‑C host (DP1.4), USB‑C device for debug/reflash, multiple CAN ports, UART, I2C.
• Camera & display: Up to 4 MIPI CSI‑2 cameras (8 virtual channels), camera expansion header for GMSL2 (board not included), DP1.4 via USB‑C.
• Power & mechanical: 19–54V XT30 (XT30 to 5525 cable included), compact carrier 115 x 115 x 38 mm, desk or wall mounting.

Applications

• Autonomous mobile robots (AMR), industrial automation and robotics control.
• Multi‑camera computer vision: BEV, surveillance, smart retail and perception stacks for autonomous platforms.
• Edge AI inference for industrial and mobile deployments requiring rugged power and robust I/O.

Technical specifications

• Brand: Seeed Studio (reComputer Robotics Series)
• Models: J3011 (Orin Nano, 40 TOPS), J4011 (Orin NX, 100 TOPS), J4012 (Orin NX 16GB, 157 TOPS)
• Memory: 8GB LPDDR5 (J3011/J4011), 16GB LPDDR5 (J4012)
• Storage: 128GB NVMe SSD default; 1x M.2 Key M for expansion
• CPU/GPU: NVIDIA Arm Cortex A78AE CPU; NVIDIA Ampere GPU (Tensor Cores)
• Camera: Up to 4 CSI cameras (8 via virtual channels), 8‑lane MIPI CSI‑2, D‑PHY 2.1
• I/O: 6x USB 3.2 Type‑A, USB‑C (DP host), USB‑C device (debug), 2x RJ45 Gigabit Ethernet, multiple CAN, UART, I2C
• M.2 slots: Key E (Wi‑Fi/BT), Key B (5G), Key M (NVMe)
• Power input: 19–54V (XT30 2+2), XT30 to 5525 DC jack cable included
• Thermal / power modes: 25W and MAXN modes; Super Mode for enhanced throughput
• Operating temperature: -20°C to 60°C (25W); -20°C to 55°C (MAXN) with recommended heatsink/fan
• Mechanical: 115 x 115 x 38 mm; Weight ≈ 200 g
• Software: JetPack 6.2 pre‑installed + Linux BSP; Jetson examples and deployment scripts available
• Warranty & compliance: 2 years warranty; certifications pending (RoHS, REACH, CE, FCC, KC)
