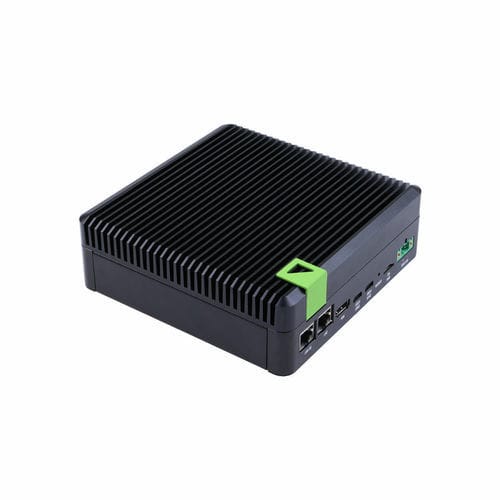

Edge AI PC reComputer

expansionwall-mountedDIN rail

Overview
reComputer Industrial series is a fanless edge AI industrial computer powered by NVIDIA Jetson™ modules, offering 20–100 TOPS AI performance with hybrid connectivity and multiple mounting options for reliable deployment in harsh environments.

Key Features

• Fanless compact design: Thermal reference design supporting -20°C to 60°C; stable operation with 0.7 m/s airflow.
• Rich industrial interfaces: 2x RJ-45 GbE (one PoE-PSE 802.3 af), 1x DB9 (RS232/422/485), 4x DI / 4x DO, 1x CAN, 3x USB3.2 Gen1, USB2.0 Type-C device/debug.
• Hybrid connectivity: M.2 Key B slot for 5G/4G/LTE/LoRaWAN®/GPS modules; 1x Nano SIM slot; SMD Wi‑Fi/Bluetooth support (customizable).
• Flexible mounting: Desk, DIN rail, wall-mount and VESA options for industrial installations.
• Scalable AI performance: Compatible with NVIDIA Jetson modules (Orin NX, Orin Nano, Xavier NX) delivering 20–100 TOPS.
• Certifications: FCC, CE, RoHS, UKCA; designed for industrial applications.

Hardware Overview
The system consists of a common carrier board and interchangeable Jetson modules. A single carrier design ensures consistent industrial I/O, storage and mounting across models.

Carrier Board Highlights

• M.2 NVMe storage (M.2 Key M PCIe Gen4.0, 2280 SSD included)
• 1x LAN (PoE PSE 802.3 af 15W) + 1x LAN (GbE)
• M.2 Key B for cellular modules; 1x Nano SIM slot
• Support for SMD Wi‑Fi/Bluetooth (customization available)
• 2x CSI camera interfaces (2-lane 15pin)
• Fanless passive heatsink with 1x fan connector (5V PWM), TPM 2.0 connector (optional), RTC socket (CR1220 included)
• DC 12V–24V terminal block and 19V power adapter (adapter sold without power cord)

Application Fields
Suitable for AI video analytics, machine vision, medical imaging, autonomous mobile robots (AMR) and on‑edge generative AI; supports multi‑stream video analytics and vision‑language models.

Model Selection

• J4012 | Orin NX 16GB | 100 TOPS | 16GB | 1024-core Ampere | 8-core A78AE | -20°C ~ 60°C
• J4011 | Orin NX 8GB | 70 TOPS | 8GB | 1024-core Ampere | 6-core A78AE | -20°C ~ 60°C
• J3011 | Orin Nano 8GB | 40 TOPS | 8GB | 1024-core Ampere | 6-core A78AE | -20°C ~ 60°C
• J2012 | Xavier NX 16GB | 21 TOPS | 16GB | 384-core Volta | 6-core Carmel | -20°C ~ 60°C
• J2011 | Xavier NX 8GB | 21 TOPS | 8GB | 384-core Volta | 6-core Carmel | -20°C ~ 60°C
• J3010 | Orin Nano 4GB | 20 TOPS | 4GB | 512-core Ampere | 6-core A78AE | -20°C ~ 60°C

Jetson Module Specifications Comparison

• AI Performance: 100 / 70 / 40 / 21 / 21 / 20 TOPS (models J4012, J4011, J3011, J2012, J2011, J3010)
• GPU: NVIDIA Ampere or Volta classes (512 / 1024 / 384 cores depending on module)
• CPU: Arm® Cortex‑A78AE or NVIDIA Carmel cores (6 or 8 cores)
• Memory: 4GB / 8GB / 16GB (module dependent)

Carrier Board Specifications (Common for All Models)

• Storage: 1x M.2 Key M PCIe Gen4.0 NVMe (M.2 2280 SSD 128GB included)
• Ethernet: 1x LAN1 RJ45 GbE PoE (PSE 802.3 af 15W); 1x LAN2 RJ45 GbE
• M.2 Key B: 1x slot for cellular modules (4G/5G optional)
• USB: 3x USB3.2 Gen1; 1x USB2.0 Type-C (device mode); USB2.0 Type-C for debug
• I/O: 4x DI, 4x DO, CAN, multiple GNDs; 1x DB9 (RS232/422/485); 1x HDMI 2.0 Type A; 2x CSI
• Power: DC 12V–24V terminal block; 19V power adapter supported (adapter sold without power cord)
• Mechanical: 159 x 155 x 57 mm; Weight 1.57 kg; Mounting: Desk, DIN rail, wall, VESA
• Environment: Operating temp -20 ~ 60 °C (with 0.7 m/s airflow); 95% RH @40 °C non‑condensing; Vibration 3 Grms; Shock 50G
• Warranty: 2 Years

Technical specifications

• Brand: Seeed Studio
• Series / Model: reComputer Industrial Jetson™
• AI performance range: 20 TOPS to 100 TOPS
• Supported Jetson modules: Orin NX (16GB / 8GB), Orin Nano (8GB / 4GB), Xavier NX (16GB / 8GB)
• Memory options: 4GB / 8GB / 16GB
• Storage: M.2 Key M PCIe Gen4.0 NVMe (M.2 2280 included)
• Ethernet: 2x RJ45 GbE (one supports PoE PSE 802.3 af)
• Cellular expansion: M.2 Key B slot; 1x Nano SIM slot
• Mounting: Desk, DIN rail, wall, VESA
• Certifications: FCC, CE, RoHS, UKCA
