Edge AI computer reComputer Mini series

desktopwall-mountedNVIDIA® Jetson Orin™ Nano

Overview

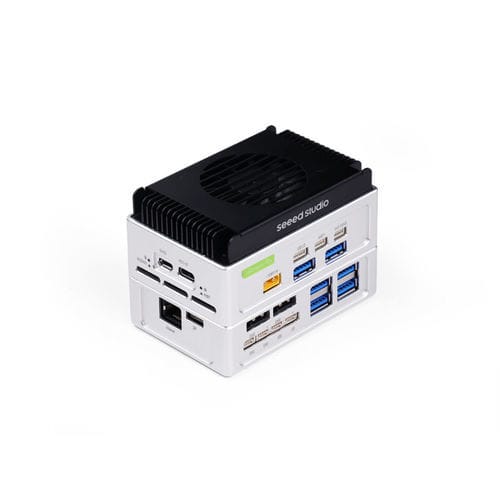

reComputer Mini Jetson™ Series is a tiny AI computer powered by NVIDIA® Jetson Orin™ modules, delivering up to 100 TOPS AI performance, designed for embedding into autonomous machines with rich expansion capabilities.

Key Features

• Brilliant AI Performance for Production: Achieves 20 TOPS (J3010), 40 TOPS (J3011), 70 TOPS (J4011), or 100 TOPS (J4012) AI performance with low power and latency, powered by NVIDIA Orin SoC integrating Ampere GPU architecture and Deep Learning Accelerators.
• Hand-Size Edge AI Device: Compact size at 63mm x 95mm x 66.7mm (with extension). Supports NVIDIA Jetson Orin NX (8GB/16GB) or Orin Nano (4GB/8GB) modules, Mini J401 carrier board, fan and enclosure. Support desktop and wall mounting.
• Expandable with Rich I/Os: Includes up to 8x USB, DP 1.4, 1x RJ45 for GbE, M.2 Key E, M.2 Key M, dual channel CAN, GPIO and other interfaces for versatile connectivity.
• Accelerate Solutions to Market: Pre-installed JetPack 6.0 on 128GB NVMe SSD, Linux OS BSP, supporting Jetson software and leading AI frameworks for rapid development.
• Scale to Deploy: Support OTA and remote management services powered by Allxon and Balena for fleet management and deployment.
• Flexible Customization: Change accessories, logo, and hardware interfaces based on reComputer Mini original design to meet specific requirements.

Model Summary (Product Model | Module Type | AI Performance | Memory | Video Encode | Video Decode)
Product Model | Module Type | AI Performance | Memory | Video Encode | Video Decode
reComputer Mini J3010 | Orin Nano 4GB | 20 TOPS | 4GB LPDDR5 | 1080p30 supported by 1-2 CPU cores | 1x 4K60 (H.265) / 2x 4K30 (H.265) / 5x 1080p60 (H.265) / 11x 1080p30 (H.265)
reComputer Mini J3011 | Orin Nano 8GB | 40 TOPS | 8GB LPDDR5 | 1080p30 supported by 1-2 CPU cores | 1x 4K60 (H.265) / 2x 4K30 (H.265) / 5x 1080p60 (H.265) / 11x 1080p30 (H.265)
reComputer Mini J4011 | Orin NX 8GB | 70 TOPS | 8GB LPDDR5 | 1x 8K30 (H.265) / 2x 4K60 (H.265) / 4x 4K30 (H.265) / 9x 1080p60 (H.265) / 18x 1080p30 (H.265) | 1x 8K30 (H.265) / 2x 4K60 (H.265) / 4x 4K30 (H.265) / 9x 1080p60 (H.265) / 18x 1080p30 (H.265)
reComputer Mini J4012 | Orin NX 16GB | 100 TOPS | 16GB LPDDR5 | 1x 8K30 (H.265) / 2x 4K60 (H.265) / 4x 4K30 (H.265) / 9x 1080p60 (H.265) / 18x 1080p30 (H.265) | 1x 8K30 (H.265) / 2x 4K60 (H.265) / 4x 4K30 (H.265) / 9x 1080p60 (H.265) / 18x 1080p30 (H.265)

Hardware Overview
1024-core NVIDIA Ampere architecture GPU with 32 Tensor Cores. CPU options: 8-core Arm Cortex-A78AE v8.2 64-bit CPU (Orin NX) or 6-core Arm Cortex-A78AE (Orin Nano variants). DL Accelerator: 2x NVDLA v2 on higher-end modules.

Carrier Board Highlights

• Storage: 1x M.2 Key M PCIe (M.2 NVMe 2242 SSD 128GB included).
• I/O: 2x USB 3.2 Type-A (10Gbps), 1x USB 3.2 Type-C (Host Mode, includes DP 1.4), 1x USB 2.0 Micro-B (Device Mode), 1x USB 2.0 JST-5pin (Host Mode), UART, Debug UART, DP 1.4 via Type-C, Fan Connector (5V PWM), Reset and Recovery buttons, 2x 60-pin High Speed Connector (for extension board), 1x 10-pin Power Connector (for extension board), 1x RTC 2-pin.
• Power: 1 x XT30 Connector (12-54V DC).
• Dimensions: 63mm x 95mm x 42mm (Without Extension); 63mm x 95mm x 66.7mm (With Extension).
• Weight: 345g (Without Extension); 462g (With Extension).
• Operating Temperature: -10℃ to 50℃.
• Warranty: 1 Year.

Applications & Capabilities

• Designed for embedding into autonomous machines, robotic control, multi-stream AI video analytics, and generative AI at the edge.
• Capable of running Vision-Language Models (VLM) and processing multiple video streams; the J4012 can take up to 18x 1080p30 streams (H.265) as tested.
• One-line deploy projects provided for common Jetson examples to accelerate deployment of generative AI and computer vision models.

Caractéristiques / Spécifications techniques

• Series: reComputer Mini Jetson™.
• Modules supported: NVIDIA Jetson Orin Nano (4GB/8GB), Orin NX (8GB/16GB).
• AI Performance: 20 TOPS (J3010), 40 TOPS (J3011), 70 TOPS (J4011), 100 TOPS (J4012).
• GPU: 1024-core NVIDIA Ampere architecture GPU with 32 Tensor Cores.
• CPU: 8-core Arm Cortex-A78AE v8.2 64-bit (Orin NX) or 6-core Arm Cortex-A78AE (Orin Nano).
• Memory: 4GB / 8GB / 16GB LPDDR5 depending on model.
• Storage: M.2 Key M (NVMe 2242), 128GB NVMe SSD included.
• Video Encode/Decode capabilities vary by model (see model summary above for details).
• I/O: up to 8x USB, DP 1.4 (via Type-C), 1x GbE RJ45, M.2 Key E, M.2 Key M, dual CAN, GPIO, UARTs, fan connector, extension headers.
• Power Input: XT30 (12-54V DC).
• Dimensions & Weight: 63mm x 95mm x 42mm (without extension) / 66.7mm (with extension); 345g (without) / 462g (with).
• Operating Temperature: -10℃ to 50℃.
• Pre-installed Software: JetPack 6.0 pre-installed on included 128GB NVMe SSD; Linux BSP and support for Jetson software and mainstream AI frameworks.
• Deployment & Management: Supports OTA and remote management via Allxon and Balena.
