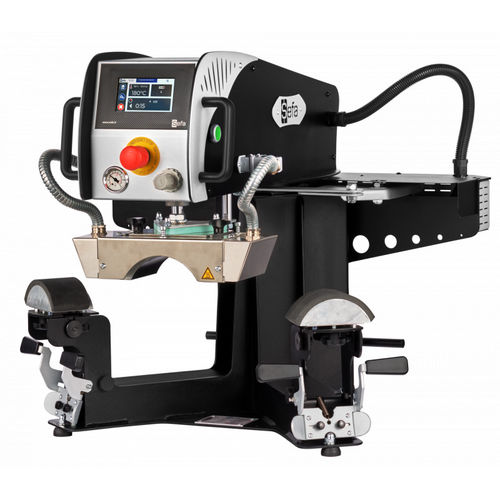

Pneumatic press DUPLEX MINI PRO

heat transferfor textilesmini

Product overview
The DUPLEX MINI PRO is a pneumatic heat press with a swing/rotating platen designed for high-volume decoration of caps and logos. It features two platens (cap 18x8 cm and logo 16x16 cm) and automatic closing via two push-buttons or a foot pedal. Plates sold separately.

Highlights

• Auto open and close
• Cap tensioners
• Allows background tasking on the free platen
• Up to 4 different timers
• Designed and manufactured in France
• Two-year machine warranty
• Ten-year warranty on heating elements

Electronics

• Friendly touch screen
• Adaptive control parameters
• 10 recipe menus
• Standby mode
• Energy saving mode
• Precise and fast regulation (PID control)
• Platinum PT100 sensor
• 4 different timers
• Cycle counter
• STOP function

Data sheet
Type: Pneumatic
Operation: Swing - Rotating Plate
Platen size: Cap 18x8 cm / 7x3 in ; Logo 16x16 cm / 6x6 in
Weight: 55 Kg / 121 lbs
Pressure: 993 g/cm²
Max temperature: 220 °C / 429 °F
Power: 600 W
Power supply: 240 V Single-phase + Neutral + Ground
Amperage: 3 A
Applications: Flex, Textile Sublimation, Laser Transfer, Screen Printing, Direct to Garment
Dimension: 607 x 772 x 625 mm / 24 x 30 x 24 in

Technical specifications

• Type: Pneumatic
• Operation: Swing - Rotating Plate with automatic head translation
• Platen sizes: Cap 18x8 cm; Logo 16x16 cm
• Weight: 55 Kg
• Pressure: 993 g/cm²
• Max temperature: 220 °C
• Power: 600 W
• Power supply: 240 V single-phase + neutral + ground
• Amperage: 3 A
• Applications: Flex, textile sublimation, laser transfer, screen printing, direct-to-garment
• Dimensions (WxDxH): 607 x 772 x 625 mm
• Electronics features: Friendly touch screen; Adaptive control; 10 recipe menus; Standby and energy saving modes; PID regulation; Platinum PT100 sensor; Cycle counter; STOP function
• Warranty: 2-year machine warranty; 10-year warranty on heating elements
