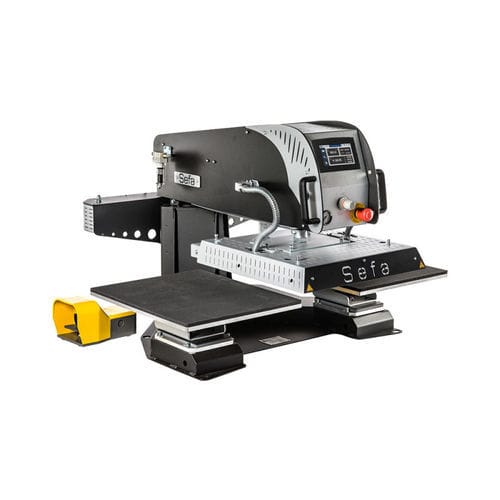

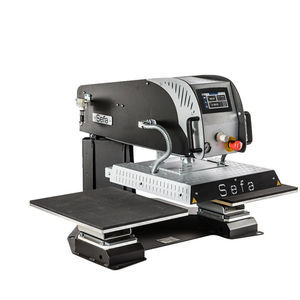

Pneumatic press e-DUPLEX PRO

for textilesrotating tableautomatic

Overview
The e-DUPLEX PRO integrates three operating modes (single platen, semi-automatic, full automatic), a foot pedal and an automatic shuttle to support high-volume thermal transfer and textile finishing workflows.

Included items / Notes

• Two Nomex® covers 40x50 cm included

Suitable for

• High-volume flex and screen printing transfers
• Sublimation on textile and rigid substrates
• DTG (Direct to Garment)
• Laser transfer
• Pretreatment and screen printing

Strengths / Key features

• Automatic opening, closing and shuttle movement
• High heating power suitable for DTG pre-treatment drying
• Foot pedal for hands-free operation and precise garment positioning before and during pressing
• Quick platen change system
• Anti-pinch safety guard
• T-shirts can be loaded from the front or rear of the platen
• Allows background tasking on the free platen
• Large clearance between, underneath and behind the platens
• 3 different press modes (single platen, semi-automatic, full automatic)
• Multifunction touch screen control panel
• Independent press time for each platen
• Pre-heating time
• Designed and manufactured in France
• 2-year machine warranty; 10-year warranty on heating elements

SEFA Electronics (control functions)

• Independent timing for each platen
• Precise temperature control
• Independent pre-heating time for each platen
• 10 programmable recipes (time / temperature / substrate)
• Adaptive regulation depending on application: sublimation, textile, DTG
• Eco mode and Standby mode
• Dual piece counter

Technical data
Type: Pneumatic
Operation: Swing - Rotating Plate
Platen size: 40x50 cm / 16x20"
Max thickness: 45 mm
Weight: 170 Kg / 375 lbs
Pressure: 625 g/cm²
°C / °F Max: 220 °C / 429 °F
Power: 2200W
Power supply: 240 V Single-phase + Neutral + Ground
Amperage: 10A
Applications: ChromaLuxe, Flex, Direct to Garment, Pretreatment, Sublimation Rigid Substrate, Textile Sublimation, Laser Transfer, Screen Printing
Dimension: 713x891x1079 mm / 28x35x42"

Technical specifications

• Type: Pneumatic
• Operation: Swing - Rotating Plate
• Platen size: 40x50 cm / 16x20"
• Max thickness: 45 mm
• Weight: 170 Kg / 375 lbs
• Pressure: 625 g/cm²
• Max temperature: 220 °C / 429 °F
• Power: 2200W
• Power supply: 240 V Single-phase + Neutral + Ground
• Amperage: 10A
• Applications: ChromaLuxe, Flex, DTG, Pretreatment, Sublimation (textile & rigid), Laser Transfer, Screen Printing
• Dimensions: 713x891x1079 mm / 28x35x42"
