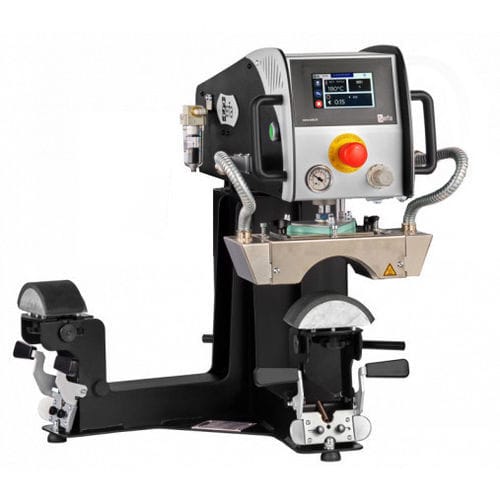

Pneumatic press DUPLEX MINI LITE

heat transferhigh-volumefor the textile industry

Short description
The DUPLEX MINI LITE is a pneumatic cap heat press with dual platens (cap and logo) designed for high-volume decoration. Closing the press is performed by two push-buttons for fast, ergonomic operation (platens/tools sold separately).

Key features (icon summary)

• Pneumatic operation for repeatable cycles
• Dual platens: cap and logo
• Energy saving / Eco mode
• Preset programs and up to 10 recipe menus
• Friendly touchscreen control with PID regulation
• Machine warranty and extended heating element warranty

Data sheet
Type: Pneumatic
Platen size: Cap 18x8 cm / 7x3" ; Logo 16x16 cm / 6x6"
Weight: 55 Kg / 121 lbs
Pressure: 993 g/cm²
Max temperature: 220 °C / 429 °F
Power: 600 W
Power supply: 240 V single-phase + neutral + ground
Amperage: 4 A
Applications: Flex, Textile sublimation, Laser transfer, Screen printing transfers, Direct-to-garment
Dimensions: 607 x 772 x 625 mm / 24 x 30 x 24"

More info
Pneumatic dual platen press dedicated to cap and logo transfer processes, optimized for continuous high-volume production.

Suitable for
High-volume flex application, screen-print transfers and sublimation printing on caps and small items.

Strengths

• Auto open and close for production flow
• Cap tensioners for consistent placement
• Enables background tasking on the free platen
• Up to 4 independent timers
• Designed and manufactured in France
• Two-year machine warranty
• Ten-year warranty on heating elements

Electronics

• Friendly touchscreen interface
• Adaptive control parameters and PID regulation
• 10 recipe menus
• Standby and energy saving modes
• Precise and fast temperature regulation (PID)
• Platinum PT100 sensor
• 4 different timers
• Cycle counter and STOP function

Technical specifications

• Type: Pneumatic
• Platen size: Cap 18x8 cm / 7x3" ; Logo 16x16 cm / 6x6"
• Weight: 55 Kg / 121 lbs
• Pressure: 993 g/cm²
• Max temperature: 220 °C / 429 °F
• Power: 600 W
• Power supply: 240 V single-phase + neutral + ground
• Amperage: 4 A
• Applications: Flex, Textile sublimation, Laser transfer, Screen printing transfers, Direct-to-garment
• Dimensions (LxWxH): 607 x 772 x 625 mm
