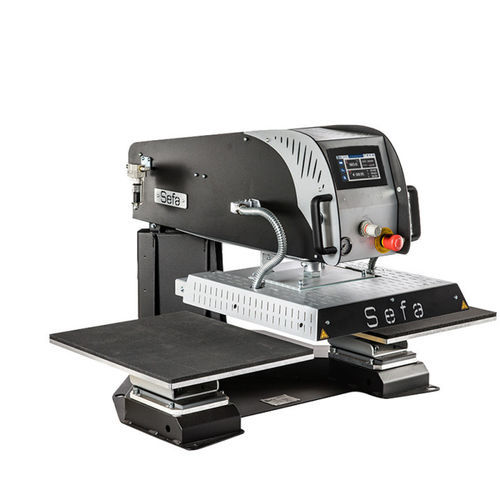

Pneumatic press e-DUPLEX LITE

for textilesrotating tabledouble

Short description
The e-DUPLEX LITE is a pneumatic dual-platen heat press designed for large-volume textile marking. It is also suitable for sublimation on textiles and rigid substrates, DTG pre-treatment drying and laser transfer. The manual head shuttle enables the operator to work alternately on each platen. Two Nomex® covers 40x50 cm included.

Features (icons)

• Pneumatic
• Iron / heating
• QR / quick release
• Double platen
• Eco mode
• GPX
• Presets
• Touchscreen
• 3-year machine warranty
• Heating warranty
• ChromaLuxe compatible

More info
Pneumatic dual-platen press with manual head shuttle. Two Nomex® covers of 40x50 cm included.

Strengths

• Automatic opening and closing
• High heating power for DTG pre-treatment drying
• Quick platen change system
• T-shirts can be loaded from the front or rear of the platen
• Allows background tasking on the free platen
• Large clearance between, underneath and behind the platens
• Pre-heating time
• Designed and manufactured in France
• Two-year machine warranty
• Ten-year warranty on heating elements

SEFA Electronics

• Independent timing for each platen
• Precise temperature control
• Independent pre-heating time for each platen
• 10 programmable recipes (time / temperature / substrate)
• Adaptive regulation depending on the application: sublimation, textile, DTG
• Eco mode
• Standby mode
• Dual piece counter

Data sheet
Type: Pneumatic
Operation: Swing - Rotating Plate
Platen size: 40x50 cm / 16x20 in
Max thickness: 45 mm
Weight: 158 Kg / 348 lbs
Pressure: 625 g/cm²
°C / °F Max: 220 °C / 429 °F
Power: 2200W
Power supply: 240 V Single-phase + Neutral + Ground
Amperage: 10A
Applications: ChromaLuxe, Flex, Direct to Garment, Pretreatment, Sublimation Rigid Substrate, Textile Sublimation, Laser Transfer, Screen Printing
Dimension: 713x891x1079 mm / 28x35x42 in

Technical specifications

• Type: Pneumatic
• Operation: Swing - Rotating Plate
• Platen size: 40x50 cm / 16x20 in
• Max thickness: 45 mm
• Weight: 158 Kg / 348 lbs
• Pressure: 625 g/cm²
• Max temperature: 220 °C / 429 °F
• Power: 2200 W
• Power supply: 240 V Single-phase + Neutral + Ground
• Amperage: 10 A
• Included: Two Nomex® covers 40x50 cm
• 10 programmable recipes, independent timing and pre-heating for each platen
• Eco and standby modes, dual piece counter
• Applications: ChromaLuxe, Flex, DTG, pretreatment, sublimation (textile & rigid), laser transfer, screen printing
• Designed and manufactured in France
• Machine warranty: 2 years; Heating elements warranty: 10 years
