Manual press SLIDE 655

pneumaticheat transferfor the textile industry

Overview

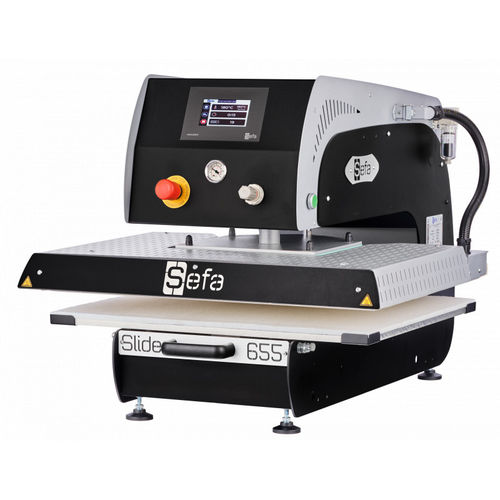

The SLIDE 655 is a large-format pneumatic slide (drawer) heat press developed in partnership with ChromaLuxe for sublimation printing on rigid substrates and textiles. It offers a 60x50 cm useful platen, pneumatic pressing and a programmable touch interface to ensure repeatable, high‑throughput production for SMEs and specialised workshops.

Highlights

• Large-format pneumatic slide press with manual drawer
• Platen size 64x54 cm (useful 60x50 cm)
• Designed for ChromaLuxe rigid substrates and textile sublimation
• Operates on standard 240 V single-phase power

Key features

• Compatible with 24 in printers
• Pneumatic pressing for controlled, repeatable pressure
• Almost full front clearance of the lower plate for easy loading
• Programmable smart touch screen with 10 memory programs
• Optional pre-heating function
• Energy-saving mode
• Manufactured in France
• 2-year warranty on the machine; 10-year warranty on heating elements

Electronics

• Touch-screen control developed by SEFA
• PID temperature regulation for fast, precise control
• 10 recordable programs
• Pieces counter with reset and double timer
• Energy-saving mode

Technical data
Type: Pneumatic
Operation: Slide - tray with drawer
Platen size: 64x54 cm / useful 60x50 cm (24x20 in)
Max thickness: 45 mm
Weight: 120 kg (265 lbs)
Pressure: 363 g/cm²
Max temperature: 220 °C / 429 °F
Power: 3300 W
Power supply: 240 V single-phase + neutral + ground
Amperage: 14 A
Applications: ChromaLuxe, sublimation on rigid substrates, textile sublimation, flex
Dimensions: 665 x 870 x 722 mm (26 x 34 x 28 in)

Technical specifications

• Slide platen with full front clearance for ergonomic loading
• 61 cm (24 in) printer compatibility
• Pneumatic pressing for controlled pressure
• Programmable touch interface with 10 memory programs
• PID temperature control for stable cycles
• Double timer and pieces counter with reset
• Optional integrated pre-heating
• Energy-saving mode for reduced consumption
• 2-year machine warranty and 10-year heating-element warranty
• Designed and manufactured in France
