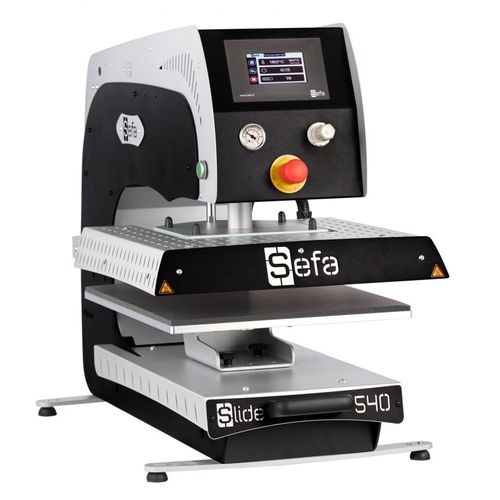

Pneumatic press e-SLIDE 540

heat transferthermocompressionfor textiles

Description
The e-SLIDE 540 is a compact pneumatic heat press designed for constrained workspaces. It features a front-sliding platen drawer, a reversible platen and the Quick Release platen fixing system. Available in two variants: e-SLIDE 540 LITE and e-SLIDE 540 PRO.

Key features

• High heating power for efficient DTG pre-treatment drying
• Pneumatic opening and closing (LITE & PRO)
• Front platen access via manual drawer (LITE) or pneumatic-assisted drawer (PRO)
• Designed and manufactured in France
• 2-year warranty on the machine
• 10-year warranty on heating elements

SLIDE 540 LITE

• Manual drawer
• Pneumatic pressing
• Two-handed safety control
• Power 2200 W

SLIDE 540 PRO

• Pneumatic-assisted drawer
• Pneumatic pressing
• Automatic drawer opening and ejection
• Two-handed safety control
• Power 2200 W

Electronics

• Time control
• Temperature control
• Preheat timer
• 10 time/temperature/support recipes
• Regulation adapted to application (sublimation, textile, DTG)
• Eco mode
• Standby mode
• Dual piece counters

Applications

• ChromaLuxe
• Flex
• Direct-to-garment printing (DTG)
• Pre-treatment drying
• Rigid substrate sublimation
• Textile sublimation
• Screen print transfers
• Laser transfers

Technical specifications

• Type: Pneumatic
• Operation: Pneumatic opening/closing (LITE & PRO); front platen clearance via manual drawer (LITE) or pneumatic drawer (PRO)
• Platen size: 40 x 50 cm (16 x 20")
• Weight: 82 kg / 181 lbs
• Pressure: 363 g/cm²
• Max temperature: 220 °C / 428 °F
• Power: 2200 W
• Supply: 240 V single-phase + neutral + earth
• Current: 10 A
• Dimensions: 621 x 847 x 572 mm (24 x 33 x 22")
• Included cover: Nomex® 40 x 50 cm
• Warranty: 2 years (machine), 10 years (heating elements)
• Control: Two-handed safety control
