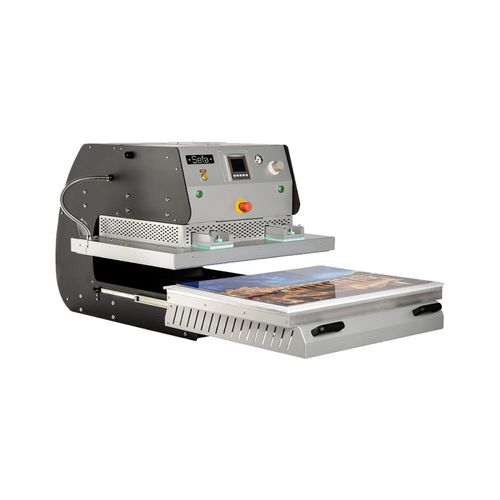

Pneumatic press SLIDE 865

heat transferthermocompressionfor textiles

Description
The SLIDE 865 was developed in partnership with ChromaLuxe, the world-leading manufacturer of high-quality rigid substrates for sublimation. This pneumatic large-format slide press with a manual drawer is designed for high-definition sublimation on large textiles and rigid substrates.

Short description
Large-format pneumatic slide press (tray with drawer) for sublimation on textiles and rigid substrates; suitable for high-resolution transfers up to 80 x 60 cm.

Suitable for

• Large-format textile marking
• Large-format textile sublimation
• Sublimation on large rigid substrates (e.g. ChromaLuxe panels)

Key features

• Automatic opening and closing
• Two independent concentric heating zones for even temperature distribution
• Lower platen slides almost completely out for easy loading
• Double pneumatic cylinders for uniform pressure across the platen
• Available in single-phase and three-phase versions
• Large touchscreen control panel
• Optimised preheat time
• Designed and manufactured in France
• Two-year machine warranty; ten-year warranty on heating elements

Electronics

• Touch-screen electronics developed by Sefa
• Precise and fast PID regulation
• 4 recordable programs
• Counter with reset
• Dual timer
• Energy-saving mode

Technical data
Type: Pneumatic
Operation: Slide – tray with drawer
Platen size: 85 x 65 cm (33 x 26 in)
Useful size: 80 x 60 cm (32 x 24 in)
Max material thickness: 45 mm
Weight: 261 kg (575 lbs)
Pressure: 453 g/cm²
Max temperature: 220 °C / 429 °F
Power: 6000 W
Power supply options: 240 V single-phase (+N+PE) or 400 V three-phase (+N+PE)
Amperage: 28 A (single-phase), 9 A (three-phase)
Applications: ChromaLuxe panels, sublimation on rigid substrates, large-format textile sublimation, Flex applications
Dimensions (W x L x H): 794 x 1756 x 893 mm (31 x 69 x 35 in)
