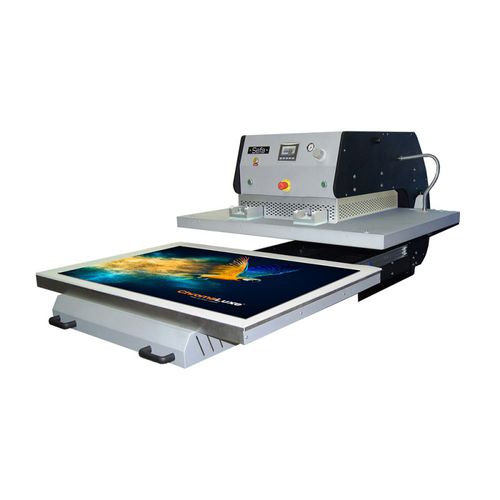

Pneumatic press SLIDE 1285

heat transferfor aluminumfor textiles

Overview
The SLIDE 1285, developed in partnership with ChromaLuxe, is a pneumatic large-format slide heat press with two independent concentric heating zones. It enables sublimation of very high-definition images up to 120 x 80 cm onto textiles and a wide range of rigid substrates such as aluminium, MDF, wood and tiles.

Suitable for

• Large-format textile printing and sublimation
• Sublimation on large-format rigid substrates (ChromaLuxe panels, aluminium, MDF, wood, tiles)
• Production of high-definition decorative panels and signage

Strengths

• Auto-open and auto-close functions
• Two independent concentric heating zones for even temperature distribution
• Lower platen slides out almost completely (manual drawer)
• Double pneumatic cylinders ensure uniform pressure across the platen
• Large touchscreen control panel
• Optimized preheat time
• Designed and manufactured in France
• 2-year machine warranty
• 10-year warranty on heating elements

Electronics

• Touch electronics developed by SEFA
• Precise and fast PID regulation
• 4 recordable programs
• Counter with reset
• Double timer
• Energy saving mode

Icons / Features (visual)

• Pneumatic operation
• Presets / Programs
• Touchscreen
• Machine warranty
• Heating elements warranty
• Three-phase power option
• ChromaLuxe collaboration

Technical specifications

• Type: Pneumatic
• Operation: Slide — tray with manual drawer
• Platen size: 125 x 85 cm (49 x 33 in)
• Useful platen size: 120 x 80 cm (48 x 32 in)
• Max thickness: 45 mm
• Weight: 419 kg (924 lbs)
• Pressure: 386 g/cm²
• Max temperature: 220 °C (429 °F)
• Power: 12,000 W
• Power supply: 400 V three-phase + Neutral + Ground
• Amperage: 18 A
• Applications: ChromaLuxe, rigid substrate sublimation, textile sublimation, flex
• Machine dimensions (LxHxD): 794 x 2153 x 1286 mm (31 x 85 x 50 in)
