Manual press CLAM SPORT v3

markingheat transferfor textiles

Short description

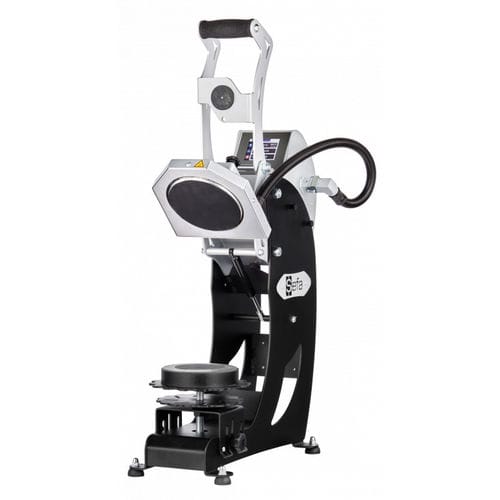

The CLAM SPORT v3 is a ball heat press designed to apply flex and other heat transfers on inflated balls. Its switchable lower platen adjusts height quickly to accommodate different ball sizes. The unit also accepts a curved cap platen or a small platen for marking caps, shoes and logos, enabling fast conversion between applications.

Strengths

• Auto-open clam-style ball press
• Compatible with multiple ball sizes via adjustable lower platen
• Easily converts to cap, logo or shoe press
• Preheat function for consistent transfers
• Designed and manufactured in France
• Two-year machine warranty
• Ten-year warranty on heating elements

Electronics

• Time control
• Temperature control
• Preheating time setting
• Five recipe slots (time / temperature / substrate)
• Adaptive regulation for sublimation, textile and DTG applications
• Eco mode
• Dual piece counter

Applications

• Screen printing transfers
• Flex (heat transfer vinyl)
• Textile sublimation
• Laser transfer

Data sheet

• Type: Electromagnetic
• Operation: Clam - portfolio opening
• Weight: 24 kg / 53 lbs
• Maximum temperature: 220 °C / 429 °F
• Power: 600 W
• Power supply: 240 V single-phase + neutral + ground
• Amperage: 3 A
• Dimensions (W×D×H): 899 × 503 × 231 mm / 35 × 20 × 9 in
• Convertible to cap, logo or shoe press; compatible with multiple ball sizes
• Preheat capability
• Warranty: 2-year machine warranty; 10-year warranty on heating elements
