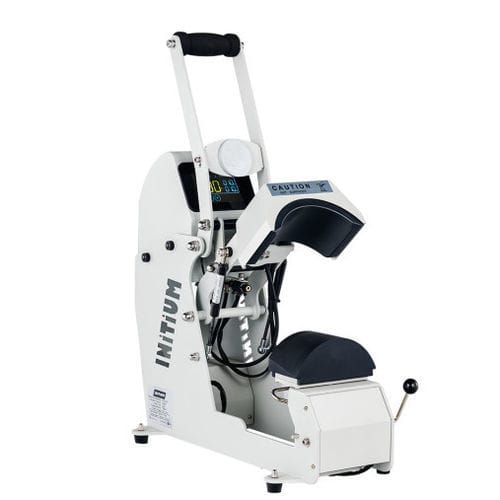

Manual press CAP INIT

heat transferfor the textile industryhand-operated

Overview
CAP INIT "Initium" range — entry-level cap heat press selected and validated by SEFA. Designed for reliable, repeatable transfers on curved substrates with a double-heating system for improved transfer quality.

Highlights

• Uniform heat and pressure distribution
• Specifically engineered for cap pressing
• 2-year warranty on the machine
• 2-year warranty on heating elements

Electronics and controls

• Fast, precise PID temperature regulation for transfers: flex, flock, sublimation, screen-print transfer
• Dual cyclic timer (press time + pre-press time)
• Two piece counters (resettable daily counter and machine totalizer)
• Three customizable presets for repeatable setups
• Energy-saving mode (adjustable Sleep Mode)
• Configurable end-of-cycle buzzer
• Time range: 0 to 999 sec (accuracy ±1%)
• Temperature range: 0 to 230 °C (accuracy ±1%)
• Electronics power (section): 800 W

Applications

• Flex
• Direct-to-Garment (DTG)
• Pretreatment
• Sublimation on rigid substrates
• Textile sublimation
• Laser transfer
• Screen-print transfer

Technical specifications

• Type: Manual
• Operation: Clam - portfolio opening
• Max thickness: 15 mm
• Weight: 58 Kg / 128 lbs
• Pressure: 330 g/cm²
• Max temperature (table): 220 °C / 429 °F
• Power (datasheet): 1550 W
• Power supply: 240 V single-phase + neutral + ground
• Amperage: 7 A
• Time range: 0 to 999 sec (accuracy ±1%)
• Temperature control range: 0 to 230 °C (accuracy ±1%)
• Electronics features: Dual cyclic timer; 2 piece counters (resettable daily counter and machine totalizer); 3 customizable presets; Energy-saving mode (adjustable Sleep Mode); Configurable end-of-cycle buzzer; PID regulation
• Warranty: 2 years on the machine; 2 years on heating elements
• Typical applications: Flex, Direct-to-Garment, Pretreatment, Sublimation Rigid Substrate, Textile Sublimation, Laser Transfer, Screen-print Transfer
