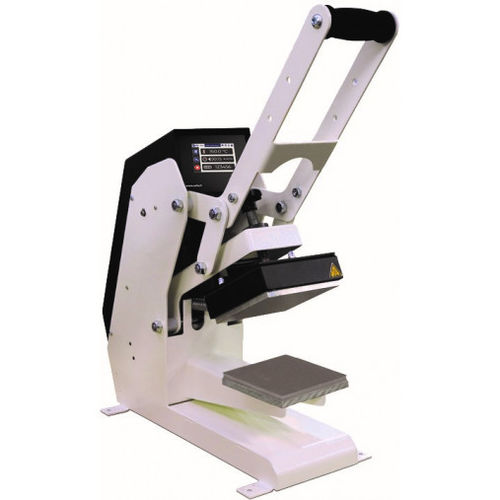

Manual press LM 130 v3

heat transferdouble

Product overview
The space-saving LM 130 v3 is an entry-level manual heat press designed for low-volume logo and transfer applications. Suitable for textile transfers, sublimation and small-run printing.

Key features

• Timers
• Eco mode
• Touch screen
• Programs / recipes
• Durable heating elements

Strengths

• Compact footprint
• Fast pre-heat time
• Designed and manufactured in France
• Two-year machine warranty
• Ten-year warranty on heating elements

Electronics

• Time control
• Temperature control
• Configurable preheating time
• 5 recipes (time/temperature/substrate)
• Adaptive regulation for sublimation, textile, DTG
• Eco mode
• Dual piece counter

Product description
Manually opening clam-style logo press with a 13x13 cm platen.

Technical data sheet
Type: Manual
Operation: Clam - Portfolio opening
Platen size: 13x13 cm / 5x5 "
Max thickness: 22 mm
Weight: 19 Kg / 42 lbs
Pressure: 600 g/cm²
°C / °F Max: 220 °C / 429 °F
Power: 400 W
Power supply: 240 V Single-phase + Neutral + Ground
Amperage: 2 A
Applications: Screen printing, Flex, Textile sublimation, Laser transfer
Dimensions: 621x549x233 mm / 24x21x9 "

Characteristics / technical specifications

• Type: Manual
• Operation: Clam - Portfolio opening
• Platen size: 13x13 cm (5x5 ")
• Max thickness: 22 mm
• Weight: 19 Kg (42 lbs)
• Pressure: 600 g/cm²
• Max temperature: 220 °C / 429 °F
• Power: 400 W
• Power supply: 240 V Single-phase + Neutral + Ground
• Amperage: 2 A
• Applications: Screen printing, Flex, Textile sublimation, Laser transfer
• Dimensions: 621 x 549 x 233 mm (24 x 21 x 9 ")
