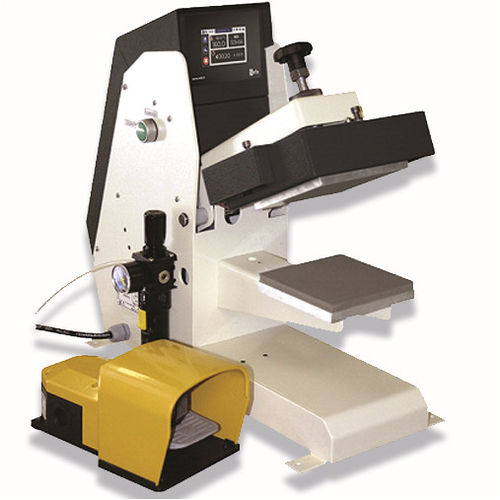

Pneumatic press LP 130 v3

heat transferfor textileshot-platen

Overview
Pneumatic logo heat press with foot-pedal control. Ideal for medium-volume logo and heat-transfer applications.

Features

• Pneumatic operation
• Eco mode
• Foot pedal control
• Timers
• Touch screen
• Programmable recipes
• Replaceable heating element

Strengths

• Auto-open and auto-close
• Foot-pedal operation for hands-free use
• Safety guard prevents hand and finger entrapment
• Adjustable pre-heat time
• Designed and manufactured in France
• Two-year machine warranty
• Ten-year warranty on heating elements

Electronics

• Controls: time, temperature, preheating time
• 10 recipes (time/temperature/substrate)
• Adaptive regulation for different applications (sublimation, textile, DTG)
• Eco mode and standby mode
• Double piece counter

Data sheet
Type: Pneumatic
Operation: Clam - Portfolio opening
Platen size: 13x13 cm / 5x5 in
Max thickness: 22 mm
Weight: 25 Kg / 55 lbs
Pressure: 940 g/cm²
°C / °F Max: 220 °C / 429 °F
Power: 400 W
Power supply: 240 V Single-phase + Neutral + Ground
Amperage: 2 A
Applications: Flex, Textile sublimation, Laser transfer, Screen printing
Dimensions: 498x544x274 mm / 19x21x11 in

Technical specifications

• Type: Pneumatic
• Operation: Clam - Portfolio opening
• Platen size: 13x13 cm / 5x5 in
• Max thickness: 22 mm
• Weight: 25 Kg / 55 lbs
• Pressure: 940 g/cm²
• Max temperature: 220 °C / 429 °F
• Power: 400 W
• Power supply: 240 V Single-phase + Neutral + Ground
• Amperage: 2 A
• Applications: Flex; Textile sublimation; Laser transfer; Screen printing
• Dimensions: 498x544x274 mm / 19x21x11 in
• Other: Auto-open and auto-close; Foot-pedal operation; Safety guard; Pre-heat time; Designed and manufactured in France; 2-year warranty on machine; 10-year warranty on heating elements
