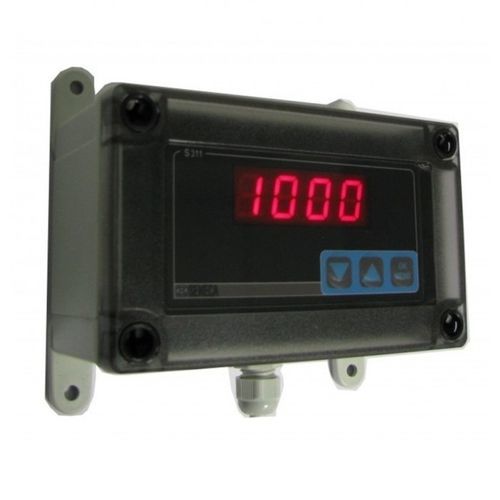

Process indicator S311AK-IP66

voltagecurrentdigital

S311AK is a 4-digit indicator with high-precision analog input: 0.05% maximum error of measurement, 16-bit resolution, thermal stability 0.005% / ° K. It acquires voltage signals (0-10 V) and current (0-20 mA) loop measurement can power (16 V, 25 mA) and is only 40 mm deep. Setting is done via the front menu keys. The version in IP66, electrically isolated, with a transparent front door opening provides high levels of functionality and safety in wet environments, dust, aggressive and extreme temperatures. S311AK-IP66 reduced wiring and installation. It can be integrated into an existing cabinet for the acquisition of an analogue measurement and display in engineering units. Description: - 4 digit display with I/V analog input, IP66 case High accuracy: - Max error 0,05% Max resolution: - 16 bit Thermal drift: - 0,005%/°K Analog input range: - Volage 0-10 V or current 0-20 mA, free setting (1-5 V, 4-20 mA, etc.) Loop power supply: - 16 V, 25 mA Power supply: - 10-40 Vdc, 19-28 Vac Case: - ABS, IP66, 130 x 80 x 60 mm Standard: - EN 50298, EN 60529, EN 62262, UL 94 HB, NEMA 1, 4, 4X, 6
