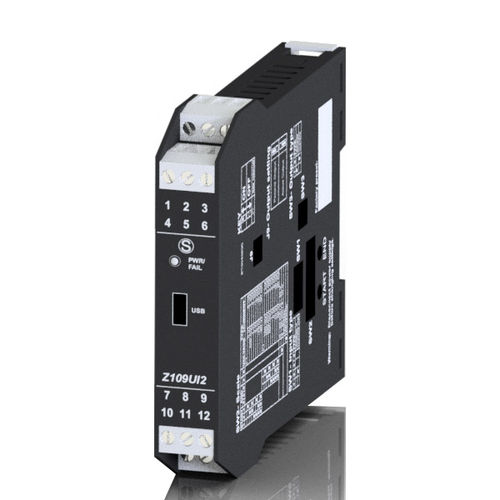

Voltage/current converter Z109UI2-1

USBgalvanic

Z109UI2-1 is a device that accepts mA/V signals able to convert it into mA/V standard signals. It’s configurable either for monopolar or bipolar inputs and all parameters are configurable through dip-switches. The device can power also all 2-wire sensors. A 3-way galvanic isolation among Power supply // input // output circuits assures the integrity of your datas. Un like the well known model Z109UI2 on the front side the jack 3.5 mm COM port has been replaced by a microUSB port. Description: - DC current / voltage converter Input: - voltage (9 scales, from 100 mV to 20 V), current (bipolar up to 20 mA) Re-transmitted output: - voltage (0..10 / 2..10 V), current (0..20 / 4..20 mA) Accuracy: - 0,1% (current / voltage input) Sample frequency / resolution: - from 240 sps (@ 11 bit + sign) up to 15 sps (@ 15 bit + sign) Power supply: - 10..40 Vdc, 19..28 Vac 50-60 Hz Operating Temp: - -10..60°C Power transducer: - 2 wire, 20 Vdc stabilized, 20 mA max protected against short circuit Insulation: - 1.500 @ 3 way Settings: - DIP switch, Software (PC Windows), App (Android) Connection: - MicroUSB port on front side
