Signal isolator-converter Z102

galvanic

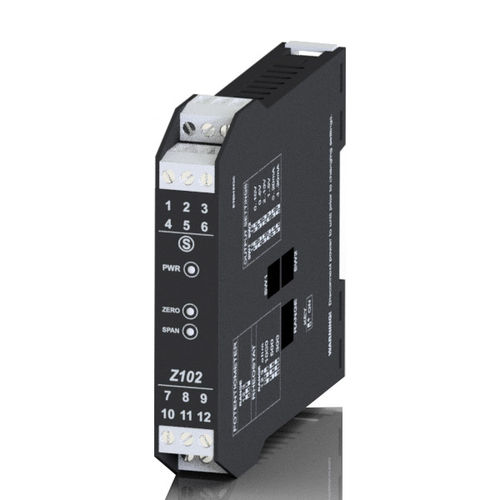

Z102 is a converter module that accepts input signals for resistance measurement with a rheostat (2-wire) and potentiometer (3-wire) connection. Z102 has an isolated analog output, with current output (with active or passive connection). Using dip-switches, the output signal range can be selected (0..20 mA, 4..20 mA, 0..5 V, 1..5 V, 0..10 V and 2..10 V). The module has a power supply presence indication on the front, diagnostic LED, and 3-point galvanic isolation supply/input/output of 1500 Vac. TECHNICAL DATA Description: - Potentiometric to DC isolator / converter Input: - 2 wire rheostat, 0..300/500, 0..1000 Ω, 3 wire potentiometer, 200 Ω..1 MΩ Output: - current 0/4..20 mA; voltage 0/1..5, 0/2..10 V Precision class: - 0,2% Power supply: - 19..40 Vdc, 19..28 Vac Insulation: - 1.500 Vac
