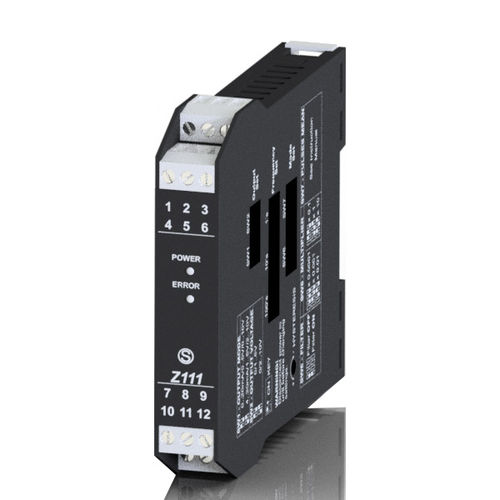

Frequency-to-voltage isolator-converter Z111

signalfrequencyTTL

Z111 allows a conversion of a frequency signal and provides a mA/V standard output signal. The input is programmable in a range from 1 mHz to 9,99 KHz. It’s completely configurable through dip switches. A 3-way galvanic isolation among Power supply // input // output circuits assures the integrity of your datas. Description: - Frequency to DC isolator/converter Pulse Input: - contact, npn 2 / 3 wires, pnp 3 wires 24 Vdc supply, Namur, photoelectric, Hall sensor, variable reluctance, 24 V pulse, TTL, oval wheel counter flow meters Frequency: - From 1 mHz (0,001 Hz) to 9.99 KHz Settable full scale: - From 10 mHz (0,01 Hz) to 9.99 KHz Output: - Current 0..20, 4..20 mA; voltage 0..5/10, 1..5, 2..10 V Power Supply: - 10..40 Vcc, 19..28 Vca 50..60 Hz, max 2,5 W Insulation: - 1.500 Vac Conformity: - CE, UL-UR CSA
