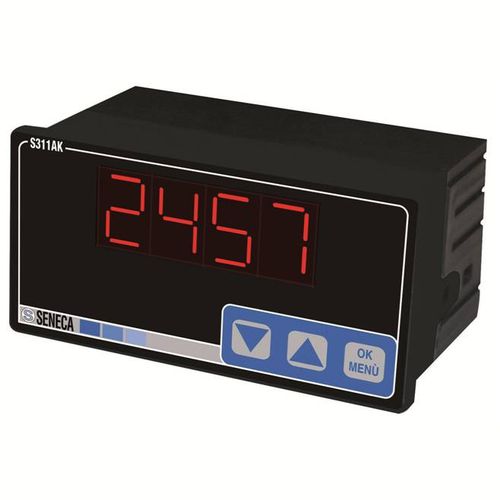

Voltage indicator S311AK series

temperaturecurrentdigital

The S311AK-4-L can read voltage (0-10 V) or current (0-20 mA) signals with or without loop powered measure. All parameters and display configuration can be set by menu. The input will be shown and scaled on 4 digit display according to the setup. S311AK-4-L has an excellent resolution, precision and temperature stability. The compact dimensions allow to improve the assembly in electrical switchboard. Description: - 4 digit display with I/V analog input, high accuracy class Accuracy: - 0,05% A/D converter: - 16 bit Protection degree: - IP65 Thermal drift: - 0,005%/°K Max power consumption: - < 0,9 W Loop power supply: - yes Power supply: - 10-40 Vdc, 19-28 Vac Input type: - mA, V Display: - 4 digit, LED Dimension: - 96x48x40 mm Programming: - Front key menu
