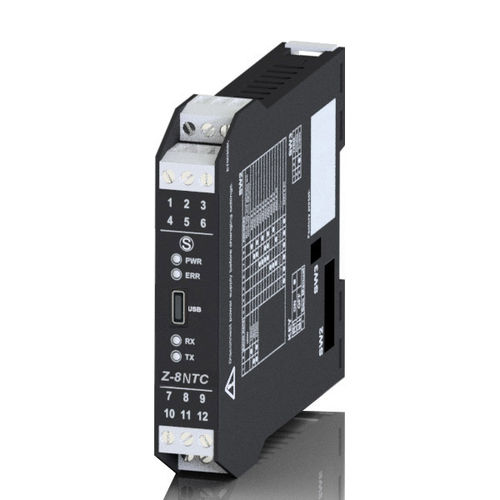

Digital converter Z-8NTC
serialModbus RTUDIN rail

digital converter
digital converter
Add to favorites
Compare this product

Characteristics

Type
digital
Bus
serial, Modbus RTU
Other characteristics
DIN rail

Description

Z-8NTC 8-ch NTC Module with ModBUS RTU protocol The Z-8NTC is a digital converter with eight measurement channels for resistors, NTC and PTC. The module is characterised by an overall three-point isolation of up to 1.500 Vac (measurement channels // Power supply // serial communication). TECHNICAL DATA ORDER CODE :Z-8NTC DESCRIPTION:CH-8 inputs from NTC/PTC thermoresistance / RS485 POWER SUPPLY:10..40 Vdc; 19..28 Vac (50-60 Hz) bus powered INPUT CHANNELS:CH-8 NTC/PTC thermoresistance with user-defined curve INSULATION:1,5 kVac @ 3 way RESOLUTION:16 bit ACCURACY:0,5% OPERATING TEMPERATURE:-20..+70°C COMMUNICATION:RS485 2 wire, ModBUS RTU slave protocol CONNECTION:microUSB on front panel PROGRAMMING:Via software EASY Setup or via DIP-switch MOUNTING:DIN rail 46277, 35 mm DIMENSION WXHXD:17,5x100x112 mm SHIPPING AND EXPORT INFORMATION PRODUCT CODEZ-8NTC GROSS WEIGHT kg0,16 ORIGINIT TARIC85389091 ECCN5A991
