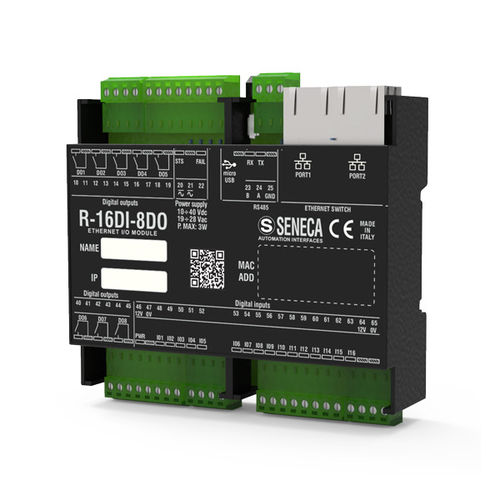

R-16DI-8DO Profinet is a mixed digital module with dual 10/100 Mbps Ethernet ports. It is designed for flexible wiring needs, small installation space, and high I/O density applications with built-in Ethernet networking. R-16DI-8DO Profinet has 16 PNP/NPN digital inputs and 8 digital relay outputs with a maximum 30 V / 1 A range. The module has insulation between inputs, outputs, and the remaining low voltage circuits of 1,500 Vac. The configuration can be made through CODESYS softPLC software and TiA Portal/Simatic Step7 design environment. R-16DI-8DO Profinet supports PROFINET IO communication and can be connected in Ethernet daisy chain mode with fault-bypass to ensure Ethernet connection even in case of failure of a module in the chain.
TECHNICAL DATA
Power supply - 10..40 Vdc; 19..28 Vac
Auxiliary voltage output - 12 Vdc / 40 mA
Max power consumption - 3 W
Insulation - 1.5 kVac
Status indicators - Power supply
Input/Output status
STS (IP address / DHCP)
Profinet IO communication
Protection degree - IP20
Operating temperature - -25..+65°C
Dimensions (WxHxD) - 106 x 90 x 32 mm
Weight - 170 g
Housing - Self-extinguishing PC / ABS material UL94-V0, black color
Connections - 3.5mm pitch terminals, Micro USB connector and dual RJ45 connector
Programming - CoDeSys
TIA Portal
Step7
GSD (General Station Description) file
Special functions - Double Ethernet Daisy Chain connection
LAN fault bypass (active connection between the two Ethernet ports of the device in case of power failure)
Interfaces - No.2 Ethernet ports (with LAN fault-bypass function) 100 baseT on RJ45
Protocols - Profinet IO (Real-Time Class1, Tbus=1ms)
